Specifications
| Manufacturer Part Number | PCG-1/2X-B |
|---|---|
| Manufacturer | Mencom |
| Product Series | PCG |
| Family Series | Mencom Cable Entries, PCG Series |
| Hub Size | 1/2 NPT |
| Number of Cables | 1 |
| Cable Style | Round |
| Angle | Straight |
| Split Frame | No |
| Cable Diameter Range | 0.2-0.35 " |
| Type | Bushing Grip |
| Composition | Non-Metallic |
| Material | Polyamide |
| Hazardous Location | No |
| Approvals | UL |
| Protection Rating | IP68 |
| Comments | Black |
| H x W x D | 1.00 " x 0.90 " x 1.80 " |
| Net Weight | 0.025 lbs |
| Gross Weight | 0.025 lbs |
Description

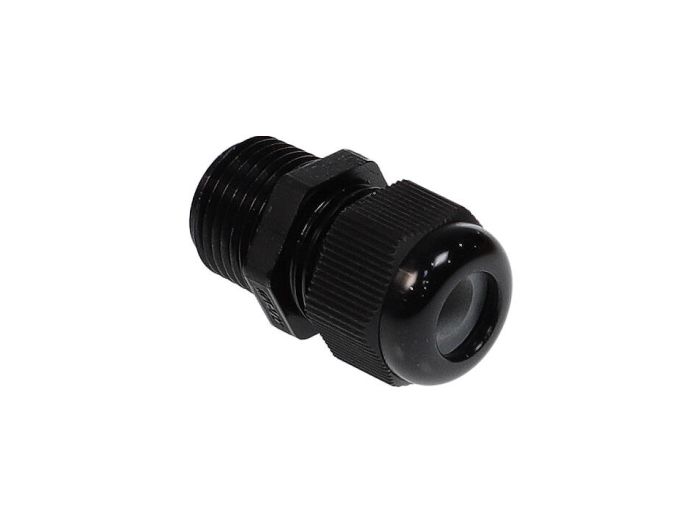

Cable Entries, PCG Series
Item #
PCG-1/2X-B
PLSTC CBL GLD 1/2NPT .197-.354
PCG Series Information
Mencom Cable Glands are easy to use and provide a good strain relief and water tight seal for round cables. The cable glands are rated up to IP 68‑5 Bar (comparable to NEMA 6P). The glands have a wide clamping range. A Locking Nut is supplied on all Metric threaded parts. O‑Rings are not required to maintain a seal on any sizes smaller than M32. An O‑Ring is supplied on size M32 and larger.
