Series

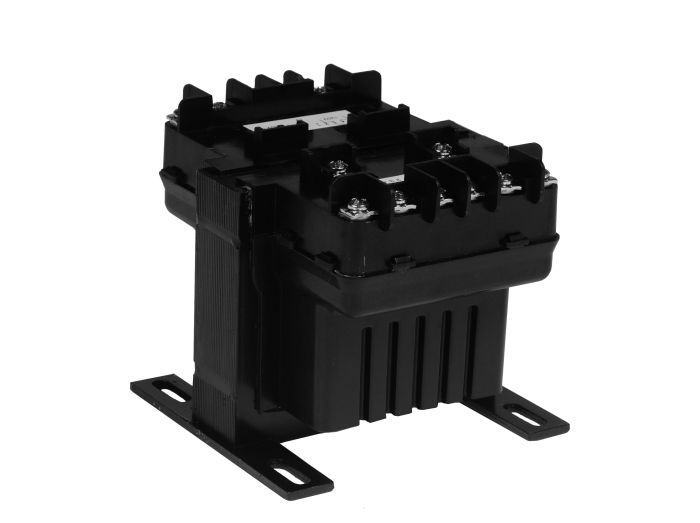

PH350MQMJ Hammond Power Solutions Transformers, HPS Imperator Series
MFG #:
PH350MQMJ
HPS Imperator, 350VA, 1PH, Open, Pri 240x480, Sec 120x240, 4.5in.Hx4.44in.Wx5.19in.D
Specifications
| Manufacturer Part Number | PH350MQMJ |
|---|---|
| Manufacturer | Hammond Power Solutions |
| Product Series | HPS Imperator |
| Family Series | Hammond Power Solutions Transformers, HPS Imperator Series |
| Phase | 1 |
| Type | Control |
| VA Rating | 350 VA |
| Primary Voltage | 220 V, 230 V, 240 V, 440 V, 460 V, 480 V |
| Secondary Voltage | 110 V, 115 V, 120 V, 220 V, 230 V, 240 V |
| Enclosed | No |
| Primary Fuseholder | Optional |
| Secondary Fuseholder | Included |
| Termination | Integrally Molded Terminal Blocks |
| Cover Included | Optional |
| Insulation Class | Class B |
| Temperature Rise (F) | 176 °F |
| Approvals | CE, UL |
| Comments | Secondary fuse clips included. Fuses, primary fuse kits, and touch safe covers sold separately. |
| H x W x D | 4.50 " x 4.44 " x 5.19 " |
| Net Weight | 10.1 lbs |
| Gross Weight | 10.1 lbs |
Description
Transformers, HPS Imperator Series
Item #
PH350MQMJ
HPS Imperator, 350VA, 1PH, Open,
HPS Imperator Series Information
- 50VA to 1500VA
- 11 Standard Voltage Groups
- Innovative Fusing Method
- Available with Standard Secondary and Optional Primary Fuse Kits
- UL Listed, CE Marked
Note from Hammond Power Solutions: "At HPS, we rate the VA capacity of our transformers at the output... where it counts. Other transformer manufacturers rate their capacity on the input side of the transformer, which can result in a 5% to 20% lower actual VA at the output."
- Limited Lifetime Warranty
- Patented Unique Terminal Block Design
- Optional Finger Safe Terminal Covers
- Custom VA and Voltage Ratings Available, Call for More Information!
