PMD575
Macromatic Protection Relays, PMD Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

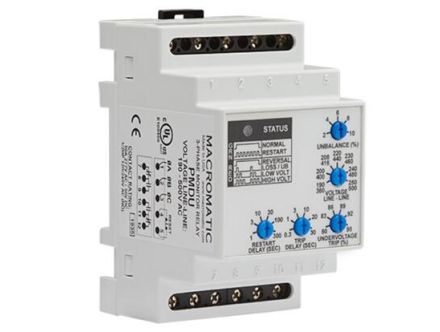

PMD575 Macromatic Protection Relays, PMD Series
Phase Monitor Relay, 575VAC,
MFG Item Number
PMD575
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Protection Relays, PMD Series
Item #
PMD575
Phase Monitor Relay, 575VAC,
PMD Series Information
- Wide Voltage Ranges to Cover More Global Applications
- True RMS Voltage Measurement
- Full Fault Indication on Top of the Unit for Easy Troubleshooting
- 10A DPDT
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | PMD575 |
| Manufacturer | Macromatic |
| Product Series | PMD |
| Family Series | Macromatic Protection Relays, PMD Series |
| Description | Phase Monitor Relay, 575VAC, DIN Rail/Surface Mount |
| Phase | 3 |
| Voltage | 120 V, 240 V, 30 V |
| Line Voltage | 460-600 V |
| Current Rating | 10 A |
| Hi Pwr (Over Vltg) Trip | Yes |
| Detection | Phase Loss, Rapid Cycling |
| Variable Point Trip | No |
| Voltage Unbalance % | 2-10 % |
| Restart Delay (Sec) | 1-300 s |
| Var Restart Delay | No |
| Manual Reset | Yes |
| Type of Display | LED Status Indicator |
| Mounting | DIN Rail |
| Output Relay | DPDT |
| Approvals | cURus, UL |
| Comments | Mechanical: 10,000,000 operations, Full Load: 100,000 operations |
| H x W x D | 2.40 " x 2.05 " x 3.45 " |
| Net Weight | 0.265 lbs |
| Gross Weight | 0.325 lbs |
