PMDU Macromatic Protection Relays, PMD Series
MFG #:
PMDU
Phase Monitor Relay, 208-480VAC, DIN Rail/Surface Mount, SPDT & SPST- N/C Output
View Full Specs

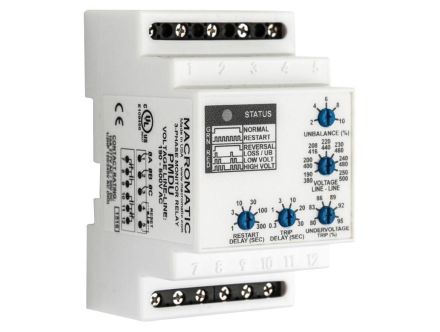

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Macromatic
Series
PMD

PMDU Macromatic Protection Relays, PMD Series

MFG #:
PMDU
Phase Monitor Relay, 208-480VAC, DIN Rail/Surface Mount, SPDT & SPST- N/C Output
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Country of Origin United States
Manufacturer Part Number PMDU
Manufacturer Macromatic
Product Series PMD
Family Series Macromatic Protection Relays, PMD Series
Phase 3
Voltage 30 V, 120 V, 240 V
Line Voltage 190-500 V
Current Rating 10 A
Hi Pwr (Over Vltg) Trip Yes
Detection Phase Loss, Rapid Cycling
Variable Point Trip No
Voltage Unbalance % 2-10 %
Restart Delay (Sec) 1-300 s
Var Restart Delay No
Manual Reset Yes
Type of Display LED Status Indicator
Mounting DIN Rail
Output Relay DPDT
Approvals cURus, UL
Comments Mechanical: 10,000,000 operations, Full Load: 100,000 operations
H x W x D 2.35 " x 2.05 " x 3.45 "
Net Weight 0.3 lbs
Gross Weight 0.34 lbs
