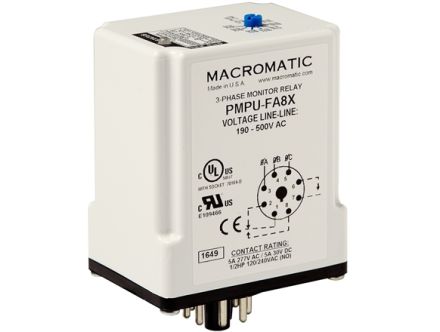

PMPU-FA8X Macromatic Protection Relays, PMP-FA12 Series
MFG #:
PMPU-FA8X
Phase Monitor Relay, 208-480VAC, 8-Pin Circular Base, SPDT/SPNO Out
View Full Specs

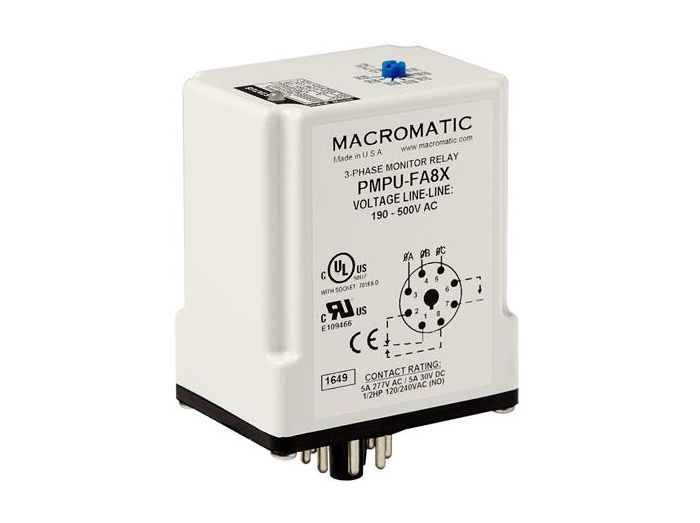

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Macromatic
Series
PMP-FA12

PMPU-FA8X Macromatic Protection Relays, PMP-FA12 Series

MFG #:
PMPU-FA8X
Phase Monitor Relay, 208-480VAC, 8-Pin Circular Base, SPDT/SPNO Out
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number PMPU-FA8X
Manufacturer Macromatic
Product Series PMP-FA12
Family Series Macromatic Protection Relays, PMP-FA12 Series
Phase 3
Voltage 30 V, 120 V, 240 V, 277 V
Line Voltage 190-500 V
Current Rating 5 A
Hi Pwr (Over Vltg) Trip Yes
Detection Phase Loss, Rapid Cycling
Variable Point Trip No
Voltage Unbalance % 6 %
Restart Delay (Sec) 2 s
Var Restart Delay No
Manual Reset No
Type of Display LED Status Indicator
Mounting Plug-In
Output Relay SPDT
Approvals cURus, UL
Comments Mechanical: 10,000,000 operations, Full Load: 100,000 operations
H x W x D 1.75 " x 2.30 " x 3.45 "
Net Weight 0.245 lbs
Gross Weight 0.29 lbs
