Specifications

Specifications
Manufacturer Part Number	PSE60-600-70
Manufacturer	ABB
Product Series	PSE
Family Series	ABB Soft Starters, PSE Series
Nominal Load Voltage	208 V, 240 V, 380 V, 480 V, 575 V
Voltage	120 VAC, 240 VAC
Nominal Voltage	120 VAC, 208 VAC, 240 VAC
AC Voltage	208-600 VAC
Current Rating	60 A
Operating Temperature	-13-140 °F
Bypass	Yes
Overload Protection	Yes
Communication	Field Bus
H x W x D	9.45 " x 5.12 " x 11.61 "
Net Weight	7.23 lbs
Gross Weight	7.23 lbs

Description

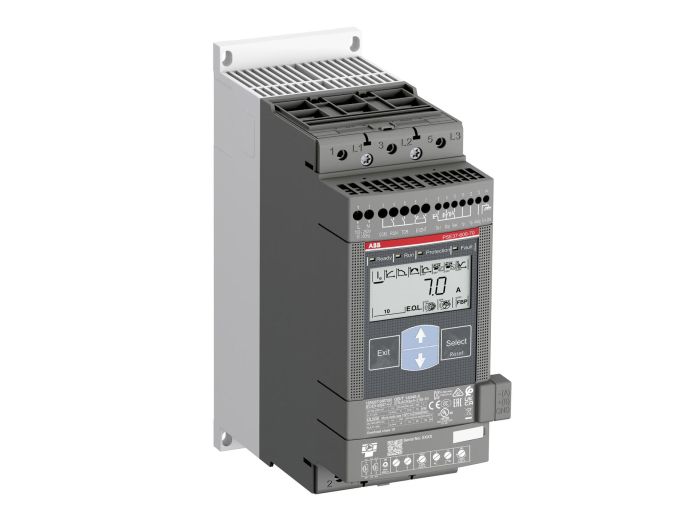

Soft Starters, PSE Series

Item #

PSE60-600-70

SOFTSTARTER

PSE Series Information

Wide Rated Operational Voltage 208 ~ 600 VAC
Wide Rated Control Supply Voltage 100 ~ 250 VAC
Coated Circuit Boards for Reliable Operation in Harsh Environment
Optional External Keypad, IP66
Torque Control for Excellent Control of Pumps

The PSE soft starter is the world's first compact soft starter with both built‑in electronic overload for motor protection and torque control for an excellent control of pumps. The compact design with the most important functionality integrated provides a very efficient starting solution. The illuminated language neutral display and the four button keypad make it easy to take advantage of all the advanced functionality in the soft starter. The display will also provide all the necessary information both during ramping and continuous operation.
