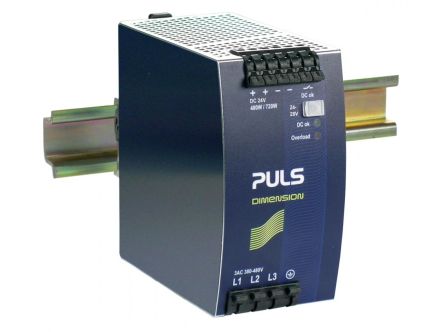

QT20.241-C1 Puls Power Supplies, Q Series
MFG #:
QT20.241-C1
POWER SUPPLY, 24VDC, 20A, 3PH, 480W 380-480V 3-PH INPUT, CONFORMAL BOARD 65mmWx125mmHx127mmD, SPRING TERMINAL
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Manufacturer Part Number | QT20.241-C1 |
| Manufacturer | Puls |
| Product Series | Q |
| Family Series | Puls Power Supplies, Q Series |
| Power | 480 W |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Phase | 3 |
| Nominal Output Voltage | 24 VDC |
| Output VDC | 24-28 VDC |
| Output Current | 20 A |
| Number of Outputs | 1 |
| Mounting | DIN Rail |
| Enclosed | Yes |
| Output Voltage Adj. | Yes |
| Overvoltage Protection | No |
| Overload Protection | No |
| Short Circuit Protection | No |
| Power Factor Correction | Yes |
| Parallel Operation | No |
| Remote Sensing | No |
| Remote On/Off Control | No |
| Operating Temperature | -13-158 °F |
| Approvals | cCSAus, CE, cULus, cURus |
| Comments | Conformal Coated |
| H x W x D | 3.66 " x 5.51 " x 5.91 " |
| Net Weight | 1.9181 lbs |
| Gross Weight | 2.3148 lbs |
Description
Power Supplies, Q Series
Item #
QT20.241-C1
POWER SUPPLY, 24VDC, 20A, 3PH, 480W
Q Series Information
- AC 100‑240V Wide‑range Input
- Efficiency up to 93.9%
- Width only 82mm
- 150% Peak Load Capability
- Active Power Factor Correction, PFC
- DC Input from 88 to 375Vdc
- Short‑term Operation from 60Vac to 300Vac
- Full Power Between ‑25°C and +60°C
- Negligibly Low Inrush Current
- DC‑OK Relay Contact
- Quick‑connect Spring‑clamp Terminals
The most outstanding features of the Dimension Q‑Series power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details.
With short‑term power capability of 150% and built‑in large‑sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy. A wide range input voltage design and a negligible low input inrush current make installation and usage simple. Diagnostics are easy due to the DC‑ok relay, a green DC‑ok, and a red overload LED.
Unique quick‑connect spring‑clamp terminals allow a safe and fast installation. Many global approvals make this unit suitable for nearly every situation.
