Series

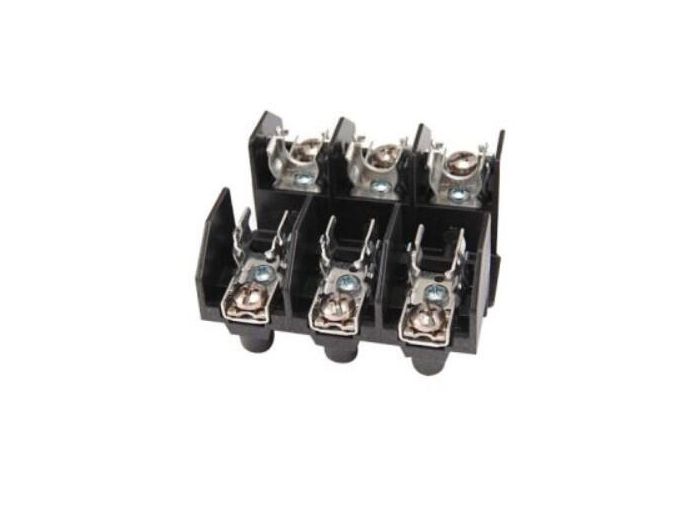

R60A3B Marathon Special Products Fuseblocks & Holders, CLASS R Series
MFG #:
R60A3B
FUSEBLOCK, 3-POLE, 60A/250V, CLASS R BOX LUG TERMINALS, REINFORCED SPRING CLIPS, UL LISTED, CSA CERTIFIED
Specifications
| Manufacturer Part Number | R60A3B |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | CLASS R |
| Family Series | Marathon Special Products Fuseblocks & Holders, CLASS R Series |
| Current Rating | 60 A |
| Voltage | 250 V |
| Poles | 3 |
| Fuse Type | Class R |
| Connection Type | Box Lug |
| Mounting | Panel Mount |
| Composition | Thermoplastic |
| Trip Indicator | No |
| Reinforced | Yes |
| Enclosed | No |
| Approvals | CE, CSA, UL |
| H x W x D | 1.95 " x 4.15 " x 4.85 " |
| Net Weight | 0.63 lbs |
| Gross Weight | 0.63 lbs |
Description
Fuseblocks & Holders, CLASS R Series
Item #
R60A3B
FUSEBLOCK, 3-POLE, 60A/250V, CLASS R
CLASS R Series Information
- 30~600 Amps
- 250 or 600 Volts
- 1~3 Poles
- Panel Mount
- Various Terminal Types
Marathon Class R Fuse blocks accommodate all Class R 250V and 600V power fuses. A choice of screw terminals, pressure connectors, box lugs, and copper box lug wire connectors are available.
