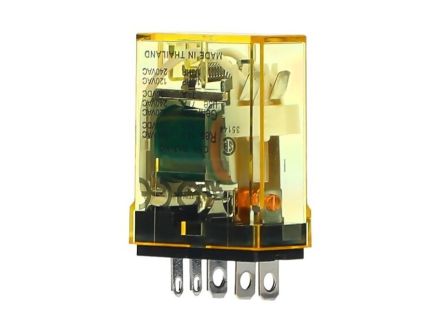

RH1B-UL-DC24

Series

RH1B-UL-DC24 IDEC Relays, RH Series

MFG #:

RH1B-ULDC24V

Relay, SPDT, 10A, 24VDC W/ Light

View Full Specs

Skip to the end of the images gallery

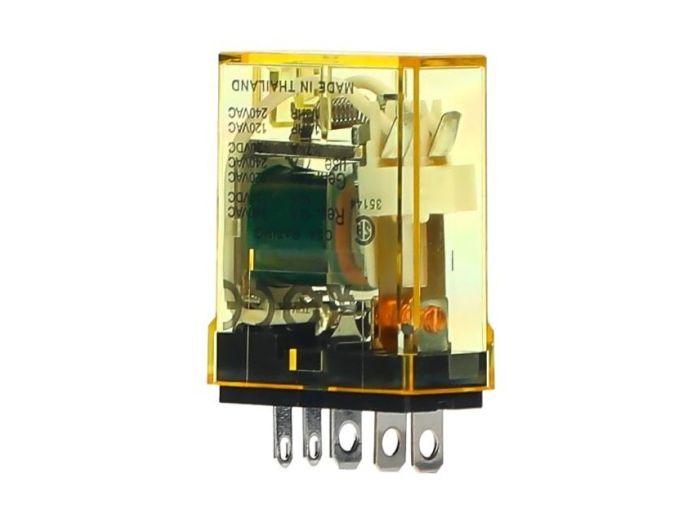

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

RH1B-UL-DC24 IDEC Relays, RH Series

MFG #:

RH1B-ULDC24V

Item Number

RH1B-UL-DC24

Relay, SPDT, 10A, 24VDC W/ Light

View Full Specs

Request Lead Time

Qty

Compare

View Alternative Products

Specifications

Specifications

Specifications
Manufacturer Part Number	RH1B-ULDC24V
Manufacturer	IDEC
Product Series	RH
Family Series	IDEC Relays, RH Series
Coil Voltage	24 VDC
Contacts	SPDT
Mounting	Plug In
Termination	.187 " Flat Blade
Enclosure	Plastic
Number of Connections	5
Status Indicator	Yes
Push-to-Test	Yes
Diode	No
Material	Silver Cadmium Oxide
Nominal Coil Voltage	24 VDC
Current Rating	10 A
Bifurcated Contact	No
Mechanical Latch	No
Safety Guided	No
H x W x D	1.08 " x 0.55 " x 1.65 "
Net Weight	0.0531 lbs
Gross Weight	0.0531 lbs

Alternatives

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Mounting	Series	Coil Voltage	Price	Action
	RH1B-ULD-DC24	Relay, SPDT, 10A, 24VDC, W/ Light and Diode Across Coil	DIN Rail, PCB, Thru-Hole	RH	24 VDC	Price unavailable

Accessories

Accessories

Compare compatible accessories for this product.

Accessories comparison
Image	Part	Description	Mounting	Series	Price	Action
	SH1B-05	Socket, DIN/Surface Mount, 5-Blade, Accomodates RH1B Series from Idec, 10A/250V Max	DIN Rail	RH	Price unavailable
	SH1B-05C	Socket, DIN/Surface Mount, Finger- Safe Terminals, For use W/ 5 Blade RH Series Relay	DIN Rail	RH	Price unavailable
	SH1B-51	Socket, Panel Mount, PCB Terminals For use W/ 5 Blade RH Series Relay	Panel	RH	Price unavailable
	SH1B-62	Socket, PCB Mount For use W/ 5 Blade RH Series Relay	PCB	RH	Price unavailable
