RH4B-U-AC120

Series

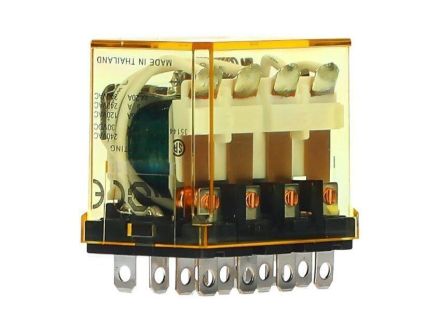

RH4B-U-AC120 IDEC Relays, RH Series

MFG #:

RH4B-UAC120V

RELAY, 4PDT, 10A, 120VAC COIL, 14 PIN BLADE TERMINALS, PLUG IN, SOLDER OR QUICK CONNECT

View Full Specs

Skip to the end of the images gallery

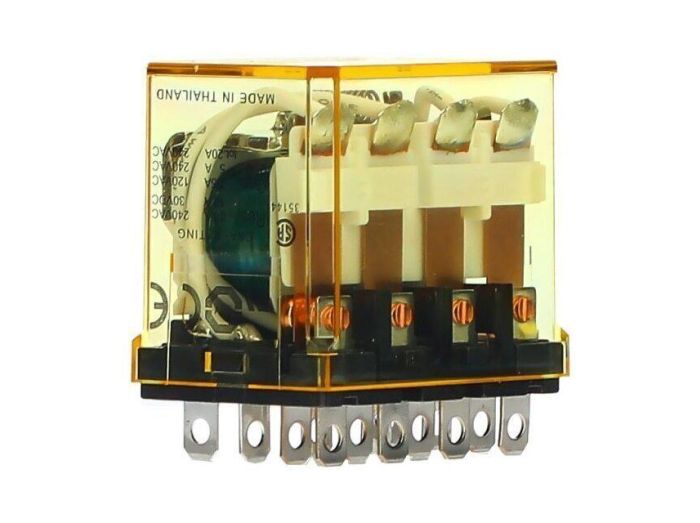

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

RH4B-U-AC120 IDEC Relays, RH Series

MFG #:

RH4B-UAC120V

Item Number

RH4B-U-AC120

RELAY, 4PDT, 10A, 120VAC COIL, 14 PIN BLADE TERMINALS, PLUG IN, SOLDER OR QUICK CONNECT

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications

Specifications
Manufacturer Part Number	RH4B-UAC120V
Manufacturer	IDEC
Product Series	RH
Family Series	IDEC Relays, RH Series
Coil Voltage	120 VAC
Contacts	4PDT
Mounting	Plug In
Termination	.187 " Flat Blade
Enclosure	Plastic
Number of Connections	14
Status Indicator	No
Push-to-Test	No
Diode	No
Material	Silver Cadmium Oxide
Nominal Coil Voltage	120 VAC
Current Rating	10 A
Bifurcated Contact	No
Mechanical Latch	No
Safety Guided	No
H x W x D	1.08 " x 1.61 " x 1.65 "
Net Weight	0.1531 lbs
Gross Weight	0.1531 lbs

Accessories

Accessories

Compare compatible accessories for this product.

Accessories comparison
Image	Part	Description	Mounting	Series	Price	Action
	SH4B-05	Socket, 14 Blade, DIN/Surface Mount, 10A/300V Max, for Use W/Idec RH4B Series Relay	DIN Rail	RH	Price unavailable
	SH4B-05C	Socket, DIN/Surface Mount, Finger- Safe Terminals For use W/ 14 Blade RH Series Relay	DIN Rail	RH	Price unavailable
	SH4B-51	Socket, Panel Mount, PCB Terminals For use W/ 14 Blade RH Series Relay	Panel	RH	Price unavailable
	SH4B-62	Socket, PCB Mount For use W/ 14 Blade RH Series Relay	PCB	RH	Price unavailable
