Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | RH4B-ULD-DC24V |
| Manufacturer | IDEC |
| Product Series | RH |
| Family Series | IDEC Relays, RH Series |
| Coil Voltage | 24 VDC |
| Contacts | 4PDT |
| Mounting | DIN Rail, PCB, Thru-Hole |
| Termination | .187 " Flat Blade |
| Status Indicator | Yes |
| Diode | Yes |
| Nominal Coil Voltage | 24 VDC |
| Safety Guided | No |
| Approvals | CE, CSA, cURus, TUV |
| H x W x D | 1.08 " x 1.61 " x 1.65 " |
| Net Weight | 0.1631 lbs |
| Gross Weight | 0.171 lbs |
Description
Relays, RH Series
Item #

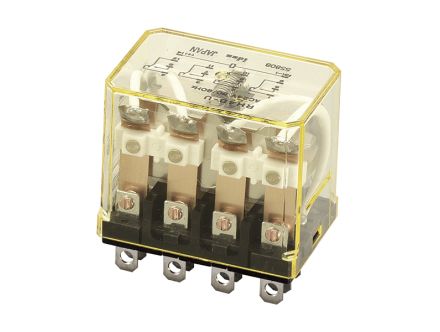

RH4B-ULD-DC24V
GP Rly 4PDT 10A 24V DC Coil w/
RH Series Information
- AC and DC Coils
- 10 Amp Contacts
- Four Contact Arrangements
- UL Recognized E66043/E55996
- Plug In or PC Mount
- Industry Standard Package
- .187" Quick Connect Terminals
- Flange Mount Available
- Common Options Include Check Button and Indicator Light
