Specifications

Specifications
Country of Origin	Mexico
Manufacturer Part Number	RL-00401
Manufacturer	MTE
Product Series	RL
Family Series	MTE Line Reactors, RL Series
Phase	3
Enclosed	No
Current Rating	4 A
Inductance	0.003 H
Terminals	Terminal Block
Mounting	Surface
Approvals	CE, CSA, UL, UR
H x W x D	4.10 " x 2.80 " x 4.40 "
Net Weight	4 lbs
Gross Weight	4 lbs

Description

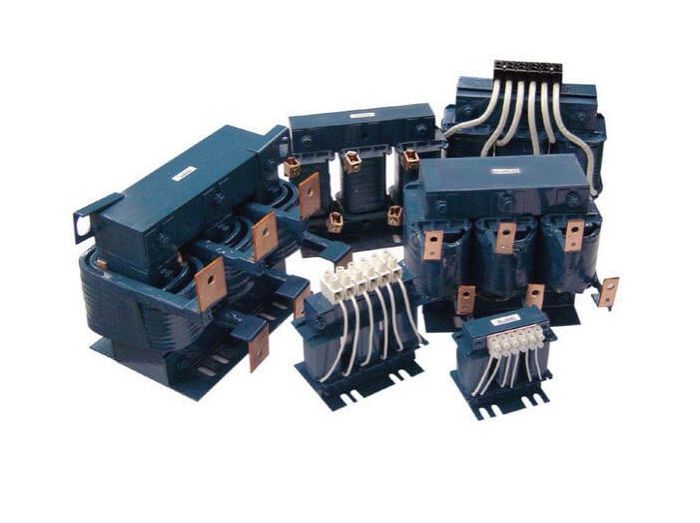

Line Reactors, RL Series

Item #

RL-00401

Reactor, 4A, 3.000mH, 3PH, Open

RL Series Information

Protect Motors from Long Lead Effects
Reduce Output Voltage dv/dt
Virtually Eliminate Nuisance Tripping
Extend Semiconductor Life
Reduce Harmonic Distortion
Reduce Surge Currents
Reduce Motor Temperature
Reduce Motor Audible Noise
Improve True Power Factor

Guard‑AC line/load reactors help keep your equipment running longer by absorbing many of the power line disturbances which otherwise damage or shut down your inverters, variable frequency drives, or other sensitive equipment. They are the modern technology solution to inverter and drive application problems.

Guard‑AC reactors are harmonic compensated & IGBT protected to assure optimum performance in the presence of harmonics. They are very effective at reducing harmonics produced by inverters and drives, and in most cases will help you to meet IEEE 519. Use our harmonic compensated reactors on either the input or output of an adjustable speed drive/inverter. There is no need to de‑rate "harmonic compensated" reactors for harmonics.
Guard‑AC reactors are manufactured to the exacting standards of MIL‑1‑45208 and VDE‑0550, are UL recognized, and are CSA certified. All UL approvals are for USA & Canada.
