Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | RLW-060001 |
| Manufacturer | MTE |
| Product Series | RLW |
| Family Series | MTE Line Reactors, RLW Series |
| Enclosed | No |
| Current Rating | 600 A |
| Inductance | 0.00002 H |
| Terminals | Terminal Block |
| Mounting | Surface |
| Approvals | CE, UL |
| H x W x D | 9.00 " x 8.75 " x 10.50 " |
| Net Weight | 86 lbs |
| Gross Weight | 86 lbs |
Description

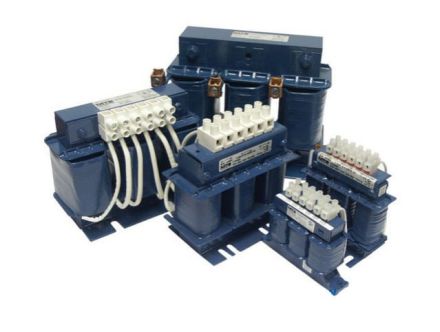

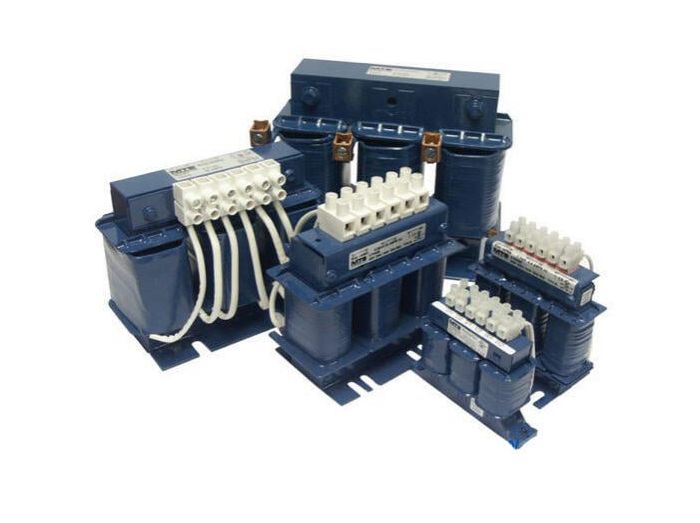

Line Reactors, RLW Series
Item #
RLW-060001
Reactor, 600A, 0.02mH, Open
RLW Series Information
- RoHS and REACH compliant
- Available in all the standard voltages from 208 to 690 VAC
- Amperage ratings of 0.5 to 750 Amps
- Suitable for application to single-phase drives for transient protection
- Crossover Tables available for other standard reactors
- Epoxy impregnation minimizes audible noise and enhances structural and moisture integrity
The MTE RLW REACTOR is MTE’s newest reactor line that, like our RL Reactor product line, keeps equipment running longer by absorbing the power line disturbances. They are a state-of-the-art filtering solution for virtually any 4 or 6 pulse rectifier or power conversion unit. Optimally designed for peak performance in a compact and lightweight design. Smaller size and weight than other standard reactors. Multiple mounting options available to accommodate your machine building needs. Reactor designed from a global perspective, allowing machines to be shipped globally. Lower horsepower selection for smaller motor protection needs.
