RTE-B1AF20

Series

RTE-B1AF20 IDEC Relays, RTE Series

MFG #:

RTE-B1AF20

Time Delay Relay, 100-240VAC, On Delay/Interval/CycleOn/Cycle Off, 0.1Sec - 600Hr Selectable 20 RANGES

View Full Specs

Skip to the end of the images gallery

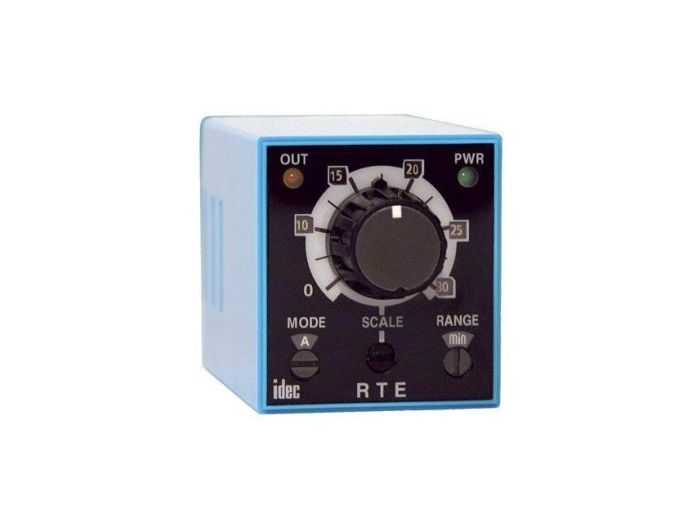

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

RTE-B1AF20 IDEC Relays, RTE Series

MFG #:

RTE-B1AF20

Time Delay Relay, 100-240VAC, On Delay/Interval/CycleOn/Cycle Off, 0.1Sec - 600Hr Selectable 20 RANGES

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications

Specifications
Country of Origin	Taiwan
Manufacturer Part Number	RTE-B1AF20
Manufacturer	IDEC
Product Series	RTE
Family Series	IDEC Relays, RTE Series
Operation	Interval, On Delay, Repeat Cycle
Contacts	DPDT
Mounting	Panel, Socket
Status Indicator	LED
Timing Range	0.1 s-600 Hrs
Max Time	600 Hrs
Coil Voltage	100-240 VAC
Nominal Coil Voltage	120 VAC, 240 VAC
Contact Rating	10 A
Termination	0.187 in Flat Blade
Protection Rating	IP40
Approvals	CE, cUL, UL
Comments	Multi-Function unit. (See datasheet for full details.)
H x W x D	1.57 " x 1.42 " x 3.07 "
Net Weight	0.1875 lbs
Gross Weight	0.23 lbs

Accessories

Accessories

Compare compatible accessories for this product.

Accessories comparison
Image	Part	Description	Mounting	Series	Price	Action
	BNDN1000	DIN Rail, 35mmWx10.5mmHx1 Meter L, Perforated Aluminum			Price unavailable
	SFA-202	Hold-Down Clip, Side Latch, 2pcs Required per Socket, For Use with Idec DIN Mount Socket			Price unavailable
	SR3B-05	Socket, DIN/Surface Mount, 11-Blade	DIN Rail	RR	Price unavailable
