Specifications
| Manufacturer Part Number | RW17-1D3-D008 |
|---|---|
| Manufacturer | WEG Electric |
| Product Series | RW |
| Family Series | WEG Electric Overload Relays, RW Series |
| Type | Bimetallic |
| Current Rating | 0.56-0.8 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10 |
| Reset Type | Automatic, Manual |
| Connection Type | Screw Terminals |
| Ambient Temperature | -4-158 °F |
| Approvals | cUL, UL |
| H x W x D | 2.50 " x 1.75 " x 3.20 " |
| Net Weight | 0.374 lbs |
| Gross Weight | 0.374 lbs |
Description

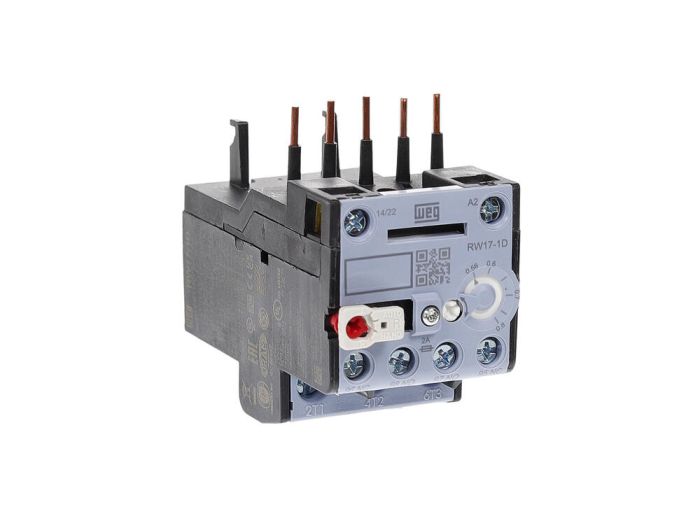

Overload Relays, RW Series
Item #
RW17-1D3-D008
Overload Relay, 0.56-0.80A, Class 10
RW Series Information
- Bimetallic Amb. Compensated
- Convertible Manual/Auto Reset
- Setting Ranges Up To 840 Amps
- Tripping Class 10A
- UL, IEC, CE Approvals
- Variety of Accessories Available
