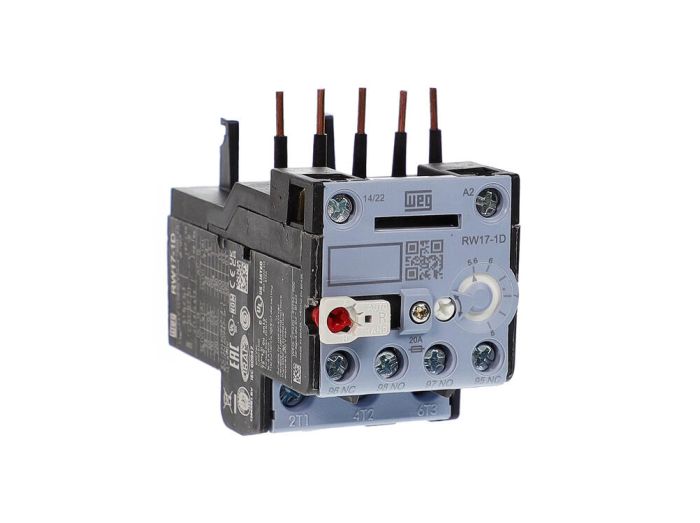

RW17-1D3-U008 WEG Electric Overload Relays, RW Series

• Bimetallic Amb. Compensated
• Convertible Manual/Auto Reset
• Setting Ranges Up To 840 Amps
• Tripping Class 10A
• UL, IEC, CE Approvals

RW series thermal overload relays can be directly mounted under WEG contactors, assuring electrical and mechanical operation as an open across the line starter. The RW series is a perfect compliment to the CWC and CWM contactors. All sizes provide complete motor protection offering ambient temperature compensation, phase loss sensitivity protection, and current unbalance sensitivity.

• Variety of Accessories Available
