Specifications

Specifications

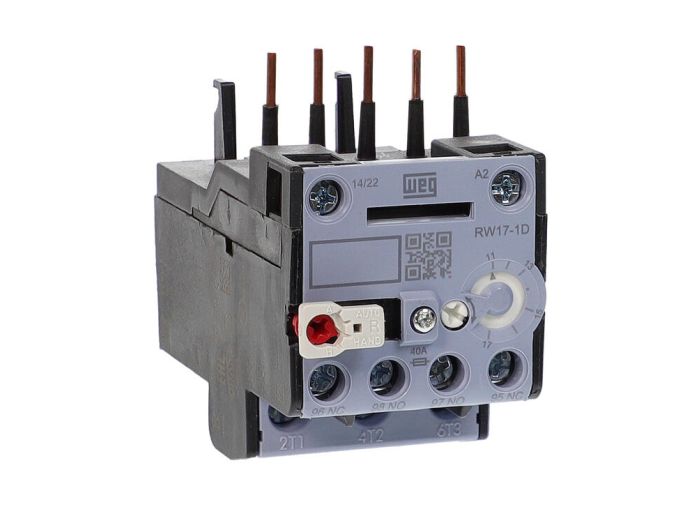

Manufacturer Part Number	RW17-1D3-U017
Manufacturer	WEG Electric
Product Series	RW
Family Series	WEG Electric Overload Relays, RW Series
Type	Bimetallic
Current Rating	11-17 A
Poles	3
Output Contacts	1NO, 1NC
Trip Class	Class 10
Reset Type	Automatic, Manual
Connection Type	Screw Terminals
Ambient Temperature	-4-158 °F
Approvals	cUL, UL
H x W x D	2.85 " x 1.80 " x 3.25 "
Net Weight	0.374 lbs
Gross Weight	0.374 lbs

Description

Overload Relays, RW Series

Item #

RW17-1D3-U017

Overload Relay, 11.0-17.0A, Class 10

RW Series Information

Bimetallic Amb. Compensated
Convertible Manual/Auto Reset
Setting Ranges Up To 840 Amps
Tripping Class 10A
UL, IEC, CE Approvals

RW series thermal overload relays can be directly mounted under WEG contactors, assuring electrical and mechanical operation as an open across the line starter. The RW series is a perfect compliment to the CWC and CWM contactors. All sizes provide complete motor protection offering ambient temperature compensation, phase loss sensitivity protection, and current unbalance sensitivity.

Variety of Accessories Available
