Specifications
| Manufacturer Part Number | RW27-1D2-U032 |
|---|---|
| Manufacturer | WEG Electric |
| Product Series | RW |
| Family Series | WEG Electric Overload Relays, RW Series |
| Type | Bimetallic |
| Current Rating | 22-32 A |
| Poles | 2 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10 |
| Reset Type | Automatic, Manual |
| Connection Type | Screw Terminals |
| Ambient Temperature | -4-158 °F |
| Approvals | cUL, UL |
| H x W x D | 2.85 " x 1.80 " x 3.25 " |
| Net Weight | 0.363 lbs |
| Gross Weight | 0.363 lbs |
Description

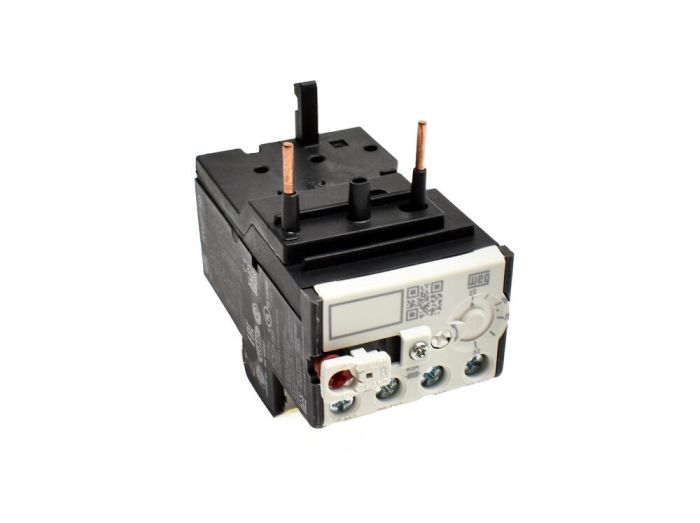

Overload Relays, RW Series
Item #
RW27-1D2-U032
Overload, 2 Pole Olr Class10 Rang
RW Series Information
- Bimetallic Amb. Compensated
- Convertible Manual/Auto Reset
- Setting Ranges Up To 840 Amps
- Tripping Class 10A
- UL, IEC, CE Approvals
- Variety of Accessories Available
Documents & Resources Links
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
|
BF27D | Overload, Individual Base Mounting | WEG Electric Relays | Mounting Base |
Price unavailable
|
