Specifications
| Manufacturer Part Number | RW27-2D3-D018 |
|---|---|
| Manufacturer | WEG Electric |
| Family Series | WEG Electric Overload Relays |
| Type | Bimetallic |
| Current Rating | 1.2-1.8 A |
| Poles | 3 |
| Output Contacts | 3 NO |
| Trip Class | Class 10 |
| Reset Type | Automatic, Manual |
| Connection Type | Screw Terminals |
| Ambient Temperature | -4-158 °F |
| Approvals | CE, cULus |
| H x W x D | 2.70 " x 1.75 " x 3.25 " |
| Net Weight | 0.363 lbs |
| Gross Weight | 0.363 lbs |
Description

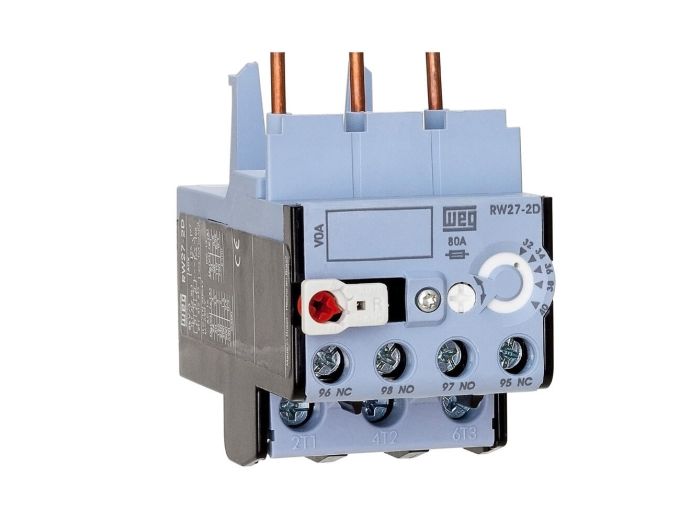

Overload Relays, Series
Item #
RW27-2D3-D018
3P OL RELAY 1.2-1.8A CLASS 10
Series Information
