RW317-1D3-U150 WEG Electric Overload Relays, RW Series
Overload, Bim Ol Relay Class10
MFG Item Number
RW317-1D3-U150
WEG-Electric

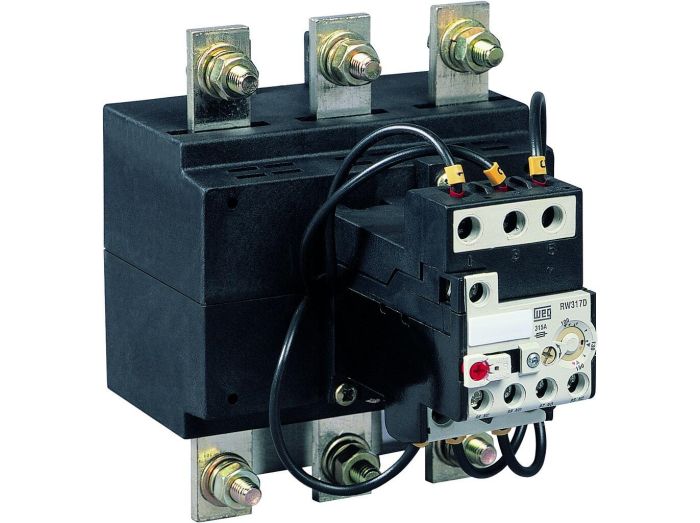

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

RW317-1D3-U150 WEG Electric Overload Relays, RW Series

Overload, Bim Ol Relay Class10
MFG Item Number
RW317-1D3-U150
WEG-Electric
Series
RW
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Overload Relays, RW Series
Item #
RW317-1D3-U150
Overload, Bim Ol Relay Class10

RW Series Information

  • Bimetallic Amb. Compensated
  • Convertible Manual/Auto Reset
  • Setting Ranges Up To 840 Amps
  • Tripping Class 10A
  • UL, IEC, CE Approvals
RW series thermal overload relays can be directly mounted under WEG contactors, assuring electrical and mechanical operation as an open across the line starter. The RW series is a perfect compliment to the CWC and CWM contactors. All sizes provide complete motor protection offering ambient temperature compensation, phase loss sensitivity protection, and current unbalance sensitivity.
  • Variety of Accessories Available

Links

Specifications

Specifications
Manufacturer Part Number RW317-1D3-U150
Manufacturer WEG Electric
Product Series RW
Family Series WEG Electric Overload Relays, RW Series
Description Overload, Bim Ol Relay Class10
Type Bimetallic
Current Rating 100-150 A
Poles 3
Output Contacts 1NO, 1NC
Trip Class Class 10
Reset Type Automatic, Manual
Connection Type Busbar
Ambient Temperature -4-158 °F
Approvals cUL, UL
H x W x D 4.75 " x 6.25 " x 6.88 "
Net Weight 4.4 lbs
Gross Weight 4.4 lbs
