Specifications
| Manufacturer Part Number | RW317-1D3-U215 |
|---|---|
| Manufacturer | WEG Electric |
| Product Series | RW |
| Family Series | WEG Electric Overload Relays, RW Series |
| Type | Bimetallic |
| Current Rating | 140-215 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10 |
| Reset Type | Automatic, Manual |
| Connection Type | Busbar |
| Ambient Temperature | -4-158 °F |
| Approvals | cUL, UL |
| H x W x D | 4.75 " x 6.25 " x 6.88 " |
| Net Weight | 4.4 lbs |
| Gross Weight | 4.4 lbs |
Description

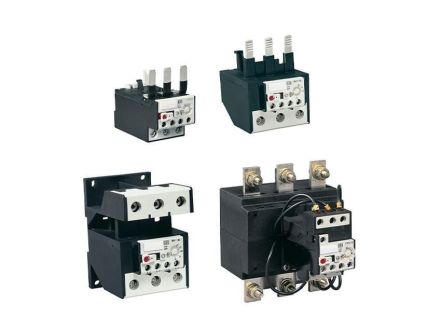

Overload Relays, RW Series
Item #
RW317-1D3-U215
Overload, Bim Ol Relay Class10
RW Series Information
- Bimetallic Amb. Compensated
- Convertible Manual/Auto Reset
- Setting Ranges Up To 840 Amps
- Tripping Class 10A
- UL, IEC, CE Approvals
- Variety of Accessories Available
