Specifications
| Manufacturer Part Number | S202UP-K15 |
|---|---|
| Manufacturer | ABB |
| Product Series | S200UP |
| Family Series | ABB Circuit Breakers, S200UP Series |
| Poles | 2 |
| Current Rating | 15 A |
| Max Voltage | 480 VAC, 125 VDC |
| Trip Curve | K |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | DIN Rail |
| Neutral Pole | No |
| Terminal Type | Screw |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | No |
| Alarm Switch | Optional |
| UL Standard | 489 |
| Approvals | CSA, UL |
| H x W x D | 3.15 " x 4.13 " x 7.20 " |
| Net Weight | 0.6095 lbs |
| Gross Weight | 3.075 lbs |
Description

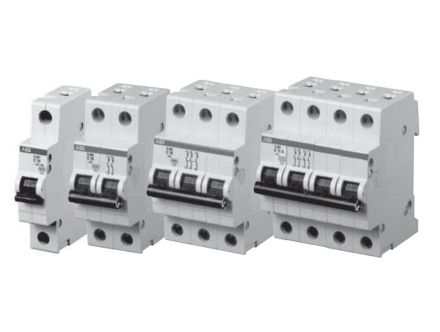

Circuit Breakers, S200UP Series
Item #
S202UP-K15
Circuit Breaker, 2-P, 15A/480V, K,
S200UP Series Information
- Branch Circuit Protector
- Use as Overcurrent Protection
- UL 489 ‑ E212323
- K, Z Trip Characteristics
- Finger Safe Terminals
- 480Y/277 VAC
- 0.2 to 25 Amps
- Line and Load Terminals Included
