SLM200A
Federal Signal Visual Signaling Devices, SLM Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

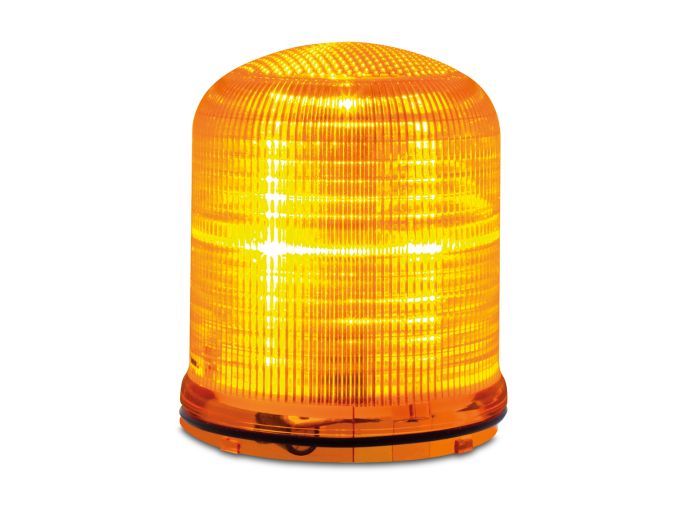

SLM200A Federal Signal Visual Signaling Devices, SLM Series
MODULAR LIGHT FLASHING STROBE RANDOM
MFG Item Number
SLM200A
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Visual Signaling Devices, SLM Series
Item #
SLM200A
MODULAR LIGHT FLASHING STROBE RANDOM
SLM Series Information
- Compatible with 12‑24VAC/DC or 120‑240VAC*
- PLC compatible with PNP or NPN connections*
- 3 Channels included: Visual only, Visual + tone 1, Visual + tone 2
- 50,000‑hour LED
- Five color options: Amber, Blue, Clear, Green and Red
- Seven mounting base options (sold separately) Base sold separately. Voltage and PLC connections are dependent on selected base. Please add the desired product to your cart and then scroll to view and select a base from the options under accessories.
Model SLM500 is a multifunctional LED beacon and sounder combination developed with a multiple input technology that allows three separate levels of alarm (alert, pre‑alarm, alarm) controllable via independent electric contacts.
Channel 1 includes a simulated strobe (triple flash) visual signal only. Channel 2 adds an audible tone, selectable from 32 tones via DIP switch, to the simulated strobe effect. Channel 3 includes a steady light and a second, unique tone selectable from 32 different toness, for a total of 64 unique tones.
The volume of a selected tone is adjustable (65‑105 dBa) for the highest performing tone. Its enclosure is made from a self‑extinguishing polycarbonate material with high impact and UV resistance.
Specifications
| Country of Origin | Italy |
|---|---|
| Manufacturer Part Number | SLM200A |
| Manufacturer | Federal Signal |
| Product Series | SLM |
| Family Series | Federal Signal Visual Signaling Devices, SLM Series |
| Description | StreamLine Modular High Output Multifunctional LED Beacon, Amber - Compatible with 12-24VAC/DC or 120-240VAC a. PLC compatible with PNP or NPN connections a. Three separate inputs: flashing, simulated strobe and random. 50,000 hour LED. Five |
| Operation | Flashing, Strobe |
| Voltage | 12-24 VAC, 12-24 VDC, 120-240 VAC |
| Nominal Voltage | 12 VAC, 12 VDC, 120 VAC, 24 VAC, 24 VDC, 240 VAC |
| Color | Amber |
| Lamp Type | LED |
| Flash Rate/Minute | 72-150 |
| Mounting | Stackable |
| Hazardous Location | No |
| Explosion Proof | No |
| Operating Temperature | -22-122 °F |
| NEMA Rating | NEMA 4X |
| Protection Rating | IP66 |
| Approvals | CE, cUL, UL |
| H x W x D | 3.90 " x 3.90 " x 4.23 " |
| Net Weight | 0.4406 lbs |
| Gross Weight | 0.45 lbs |
