Specifications
| Manufacturer Part Number | ST203M-D30 |
|---|---|
| Manufacturer | ABB |
| Product Series | ST200M |
| Family Series | ABB Circuit Breakers, ST200M Series |
| Poles | 3 |
| Current Rating | 30 A |
| Max Voltage | 480 VAC |
| Trip Curve | D |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | DIN Rail |
| Neutral Pole | No |
| Terminal Type | Screw |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| Alarm Switch | Optional |
| UL Standard | 1077 |
| Approvals | CSA, UL |
| H x W x D | 2.72 " x 2.07 " x 3.46 " |
| Net Weight | 0.0488 lbs |
| Gross Weight | 0.83 lbs |
Description
Circuit Breakers, ST200M Series
Item #

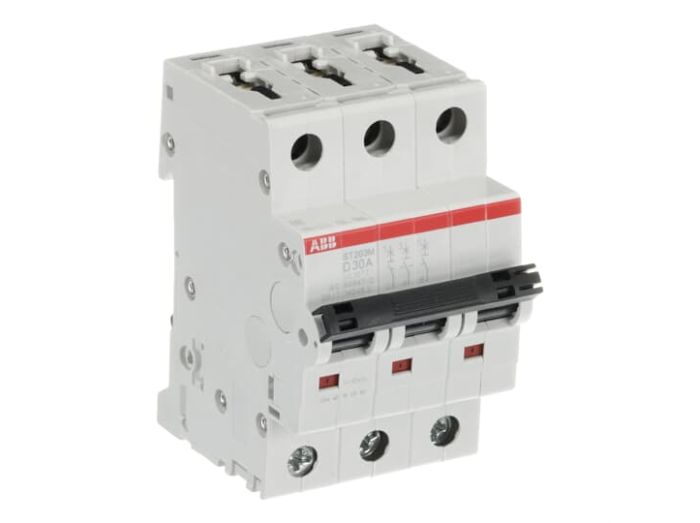

ST203M-D30
MCB ST200M 3P D 30A UL1077
ST200M Series Information
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Mounting | Series | Poles | Price | Action |
|---|---|---|---|---|---|---|---|
|
FAZ-D30/3 | Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker - supplementary protector,High levels of inrush current are expected,30 A,15 kAIC,Three-pole,10-20X /n,50-60 Hz,Standard terminals,D Curve | DIN Rail | FAZ | 3 |
Price unavailable
|
