T12S1A
MFG #:
T12S1A
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | T12S1A |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose |
| Horsepower | 1/2 hp |
| Kilowatts | 0.4 kW |
| Speed | 3,450 RPM |
| RPM | 3,450 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 56 |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Rigid |
| Current Rating | 2-2 A, 1 A |
| Composition | Rolled Steel |
| Overload Protection | None |
| H x W x D | 10.88 " x 10.50 " x 15.32 " |
| Net Weight | 32 lbs |
| Gross Weight | 32 lbs |
Description
Motors, Series
Item #
T12S1A
Motor, 1/2 HP, 3600 RPM, 56
Series Information
Documents & Resources Links
Added to Cart

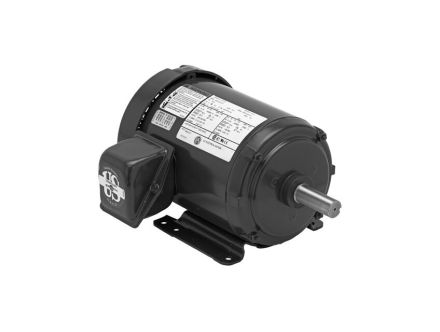

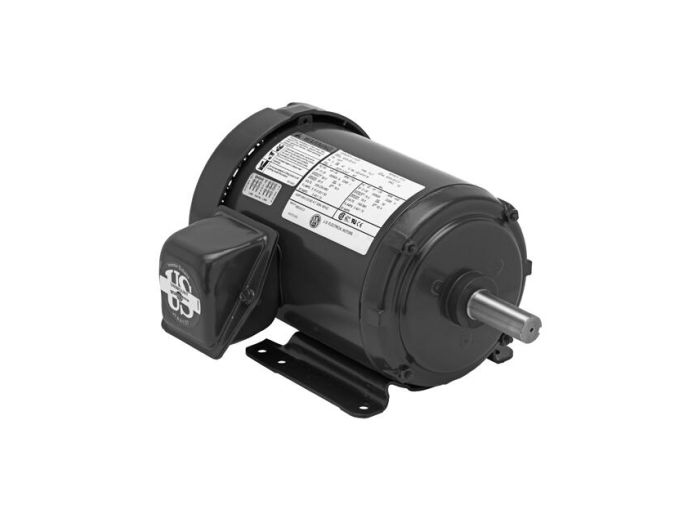

T12S1A US Motors Motors, Motor, 1/2 HP, 3600 RPM, 56
MFG #:
T12S1A
Motor, 1/2 HP, 3600 RPM, 56
