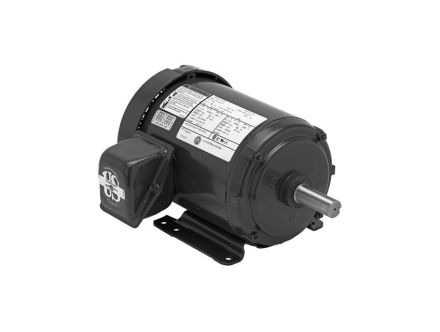

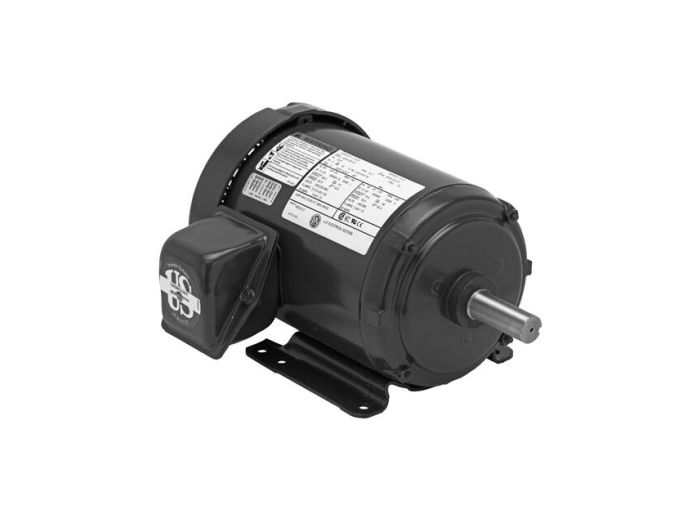

T12S3G
MFG #:
T12S3G
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | T12S3G |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose |
| Horsepower | 1/2 hp |
| Kilowatts | 0.4 kW |
| Speed | 1,140 RPM |
| RPM | 1,140 RPM |
| Number of Poles | 6 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 56 |
| AC Voltage | 575 VAC |
| Nominal Voltage | 575 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Rigid |
| Current Rating | 0.85 A |
| Composition | Rolled Steel |
| Overload Protection | None |
| H x W x D | 12.00 " x 12.00 " x 18.50 " |
| Net Weight | 32 lbs |
| Gross Weight | 32 lbs |
Description
Motors, Series
Item #
T12S3G
Motor, 1/2 HP, 1200 RPM, 56
