T16B2N49
US Motors Motors

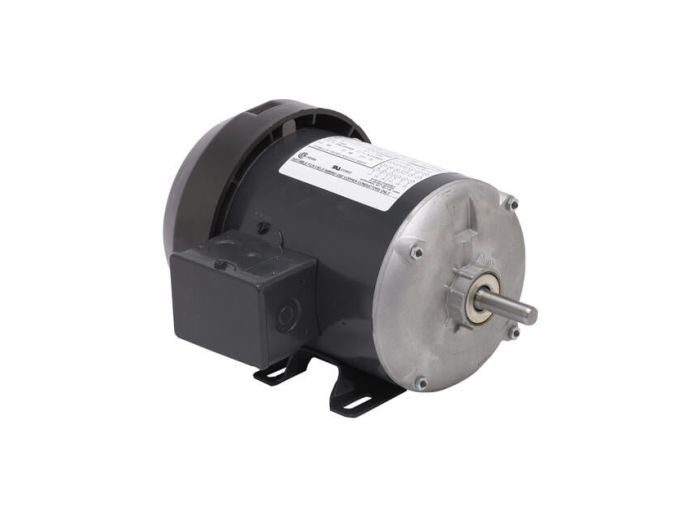

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
T16B2N49 US Motors Motors
Motor, 1/6 HP, 1800 RPM, 48
MFG Item Number
T16B2N49
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Series
Item #
T16B2N49
Motor, 1/6 HP, 1800 RPM, 48
Series Information
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | T16B2N49 |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Description | Motor, 1/6 HP, 1800 RPM, 48 |
| Type | General Purpose, Split Phase |
| Horsepower | 1/6 hp |
| Kilowatts | 0.1 kW |
| Speed | 1,725 RPM |
| RPM | 1,725 RPM |
| Number of Poles | 4 |
| Phase | 1 |
| Frequency | 60 Hz |
| NEMA Frame | 48 |
| AC Voltage | 115 VAC |
| Nominal Voltage | 120 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Cradle |
| Current Rating | 3.4 A |
| Composition | Rolled Steel |
| Bearing Type | Ball |
| Overload Protection | None |
| H x W x D | 9.63 " x 9.13 " x 13.00 " |
| Net Weight | 18.08 lbs |
| Gross Weight | 18.08 lbs |
