T1C2Z
US Motors Motors
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
T1C2Z US Motors Motors

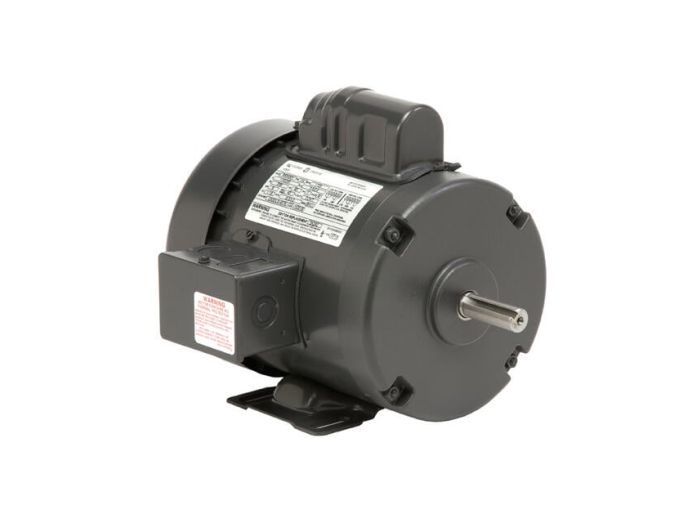

Motor, 1 HP, 1800 RPM, 56
MFG Item Number
T1C2Z
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Series
Item #
T1C2Z
Motor, 1 HP, 1800 RPM, 56
Series Information
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | T1C2Z |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Description | Motor, 1 HP, 1800 RPM, 56 |
| Type | Capacitor Start, General Purpose |
| Horsepower | 1 hp |
| Kilowatts | 0.8 kW |
| Speed | 1,725 RPM |
| RPM | 1,725 RPM |
| Number of Poles | 4 |
| Phase | 1 |
| Frequency | 60 Hz |
| NEMA Frame | 56 |
| AC Voltage | 100-120 VAC, 200-240 VAC |
| Nominal Voltage | 120 VAC, 240 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Rigid |
| Current Rating | 119.2 A |
| Composition | Rolled Steel |
| Overload Protection | None |
| H x W x D | 12.00 " x 12.00 " x 18.50 " |
| Net Weight | 24 lbs |
| Gross Weight | 24 lbs |
