T4H250TW ABB Circuit Breakers, Tmax T Series
Circuit Breaker, 3-P, 250A/600V,
MFG Item Number
T4H250TW
ABB

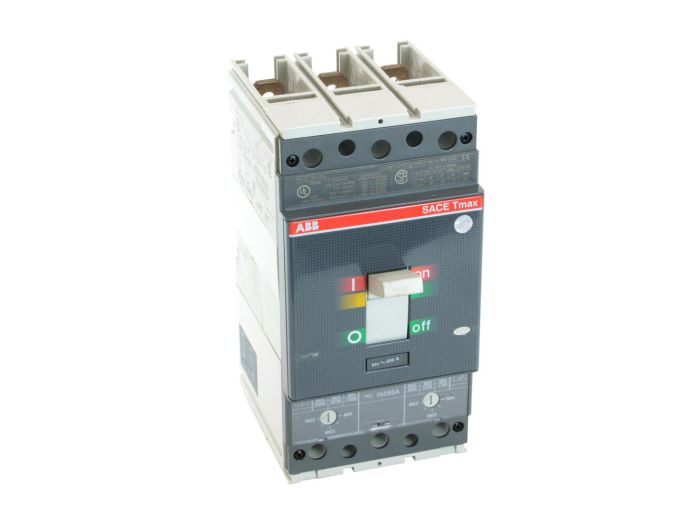

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

T4H250TW ABB Circuit Breakers, Tmax T Series

Circuit Breaker, 3-P, 250A/600V,
MFG Item Number
T4H250TW
ABB
Series
Tmax T
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Circuit Breakers, Tmax T Series
Item #
T4H250TW
Circuit Breaker, 3-P, 250A/600V,

Tmax T Series Information

  • Branch Circuit Protector
  • UL 489 Listed E93565
  • 15 ~ 2500 Amps
  • 240/277/480/600Y VAC
  • 250/500/600 VDC
The Tmax T Series of circuit breakers from ABB offer a full range of molded case circuit breakers that meet the UL 489 and CSA C22.2 Standards. Covering current ratings between 15 A and 2500 A and interrupting ratings, at 480 V AC, up to 150 kA. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, undervoltage release, and more.


Links

Videos

Specifications

Specifications
Manufacturer Part Number T4H250TW
Manufacturer ABB
Product Series Tmax T
Family Series ABB Circuit Breakers, Tmax T Series
Description Circuit Breaker, 3-P, 250A/600V, 65KAIC@480VAC, Fixed Thermal/Mag Trip, Less Lugs
Poles 3
Current Rating 250 A
Max Voltage 600 VAC, 600 VDC
Trip Unit Adj. Thermal / Adj. Magnetic
Mounting Panel
Neutral Pole No
Neutral Protection No
100% Rated No
Auxiliary Switch Optional
Shunt Trip Optional
Undervoltage Release Optional
Alarm Switch Optional
UL Standard 489
Approvals CSA, IEC, UL
H x W x D 5.40 " x 4.15 " x 8.10 "
Gross Weight 7.86 lbs
Net Weight 6.015 lbs
