T5H600BW ABB Circuit Breakers, Tmax T Series

MFG #:

T5H600BW

Circuit Breaker, 3-P, 600A/600V, 65KAIC@480VAC, LS/I Electronic Trip, Less Terminal Lugs

View Full Specs

Skip to the end of the images gallery

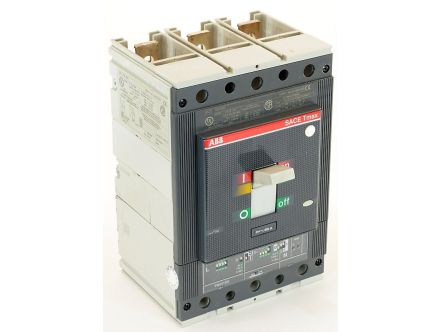

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

T5H600BW ABB Circuit Breakers, Tmax T Series

MFG #:

T5H600BW

Circuit Breaker, 3-P, 600A/600V, 65KAIC@480VAC, LS/I Electronic Trip, Less Terminal Lugs

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications

Specifications
Manufacturer Part Number	T5H600BW
Manufacturer	ABB
Product Series	Tmax T
Family Series	ABB Circuit Breakers, Tmax T Series
Poles	3
Current Rating	600 A
Max Voltage	600 VAC
Trip Unit	Electronic
Electronic Trip Unit	LS/I
Mounting	Panel
Neutral Pole	No
Neutral Protection	No
100% Rated	No
Auxiliary Switch	Optional
Shunt Trip	Optional
Undervoltage Release	Optional
Alarm Switch	Optional
UL Standard	489
Approvals	CSA, IEC, UL
H x W x D	5.40 " x 5.55 " x 8.15 "
Gross Weight	10.86 lbs
Net Weight	8.74 lbs

Accessories

Accessories

Compare compatible accessories for this product.

Accessories comparison
Image	Part	Description	Series	Current Rating	Price	Action
	KT5600-3	Terminal Lug Kit, 3/Set, (2)3/0-500, Accepts (2)3/0-500MCM/Terminal, for Use w/T5 Breaker	ABB Circuit Breakers	600 A	Price unavailable
	KT5AS	Auxiliary Contact, SPDT+1 Bell Alarm, Field Installable	ABB Circuit Breakers		Price unavailable
	KT5S4	Shunt Trip, 110-125VAC/DC, T4-T6, Field-Installable	ABB Circuit Breakers		Quote Required
	KT5S8	Shunt Trip, 24-30VAC/DC, T4-T6, Field-Installable	ABB Circuit Breakers		Price unavailable
	KT5U8	UNDERVOLTAGE RELEASE, 24VAC/DC FIELD INSTALLABLE FOR USE W/ T4-T5 CIRCUIT BREAKER	ABB Circuit Breakers		Quote Required
