Specifications

Specifications
Manufacturer Part Number	T5H600DW
Manufacturer	ABB
Product Series	TMAX
Family Series	ABB Switches, TMAX Series
Frame Size	T5
Number of Poles	3
AC Voltage	600 VAC
DC Voltage	600 VDC
Interrupting Current	65 kA
Interrupting Voltage	480 V
Current Rating	600 A
Trip Unit	6,000 A
Approvals	CSA, IEC, UL
H x W x D	5.35 " x 5.50 " x 8.15 "
Net Weight	7.68 lbs
Gross Weight	9.82 lbs

Description

Switches, TMAX Series

Item #

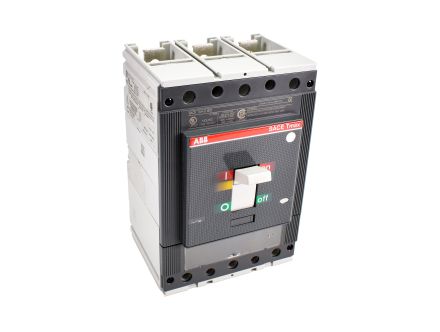

T5H600DW

MOLDED CASE SWITCH, 3-P, 600A

TMAX Series Information

Suitable for use in both Industrial and Civil low voltage plants.
Guarantees strong limitation of specific let‑through energy and reduction in peak currents.

Tmax are characterized by an extremely high level of performances with limited overall dimensions, installation simplicity and an increasingly greater guarantee of safety for the operator thanks to their reinforced insulation. Tmax circuit‑breakers, thanks to their performances, can be used for all distribution and sub‑distribution application for both AC and DC electrical plants.
