Specifications
| Manufacturer Part Number | T5N400TW |
|---|---|
| Manufacturer | ABB |
| Product Series | Tmax T |
| Family Series | ABB Circuit Breakers, Tmax T Series |
| Poles | 3 |
| Current Rating | 400 A |
| Max Voltage | 600 VAC, 600 VDC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| Neutral Pole | No |
| Neutral Protection | No |
| 100% Rated | No |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| Alarm Switch | Optional |
| UL Standard | 489 |
| Approvals | CSA, IEC, UL |
| H x W x D | 9.60 " x 1.00 " x 11.50 " |
| Gross Weight | 10.65 lbs |
| Net Weight | 10.65 lbs |
Description

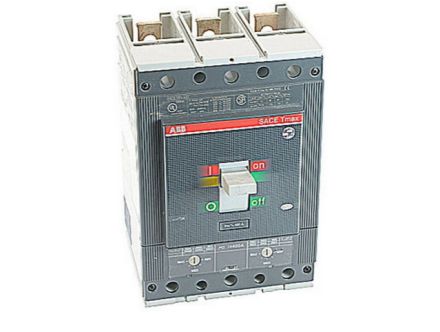

Circuit Breakers, Tmax T Series
Item #
T5N400TW
Circuit Breaker, 3-P, 400A/600VAC
Tmax T Series Information
- Branch Circuit Protector
- UL 489 Listed E93565
- 15 ~ 2500 Amps
- 240/277/480/600Y VAC
- 250/500/600 VDC
Documents & Resources Links
Videos
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Current Rating | Price | Action |
|---|---|---|---|---|---|---|
|
KT5400-3 | Terminal Lug Kit, 3/Set, (2)2/0-250, Accepts (2)2/0-250MCM/Terminal, High Profile Covers incl. for Use W/T5 | ABB Circuit Breakers | 400 A |
Price unavailable
|
|
|
KT5400-3C | Terminal Lug Kit, 3/Set, W/Ctrl Pwr Taps, Accepts (2)3/0-250MCM, For Use W/T5 Breaker, 400A Max | ABB Miscellaneous |
Price unavailable
|
