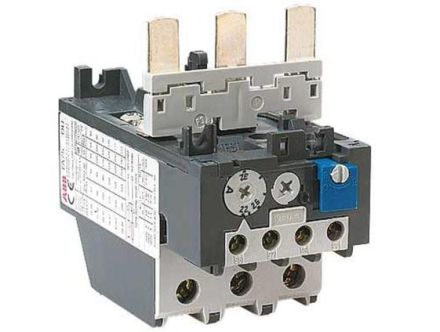

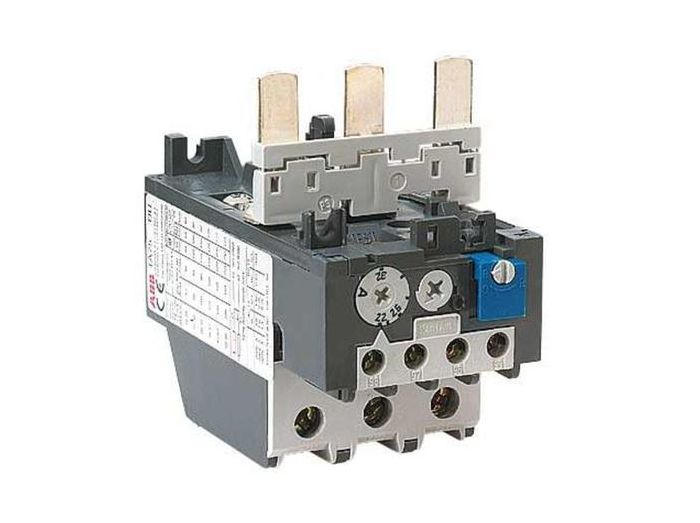

TA75DU25 ABB Overload Relays, TA Series

OVERLOAD RELAY,18-25A

MFG Item Number

TA75DU25

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

TA75DU25 ABB Overload Relays, TA Series

OVERLOAD RELAY,18-25A

MFG Item Number

TA75DU25

Series

More specs

This item cannot be canceled or returned

Discontinued by Manufacturer

Request Lead Time

View Alternative Products

Recommended Replacement Products

The original part is discontinued by the manufacturer. Our team has identified the following equivalent replacement.

TF65-28

ABB Overload Relays, TF65 Series

Description

Overload Relays, TA Series

Item #

TA75DU25

OVERLOAD RELAY,18-25A

TA Series Information

Bimetallic Amb. Compensated
Convertible Manual/Auto Reset
Setting Ranges Up To 310 Amps
Tripping Class 10A
UL; CSA Approvals

TA Series thermal overload relays are used in conjunction with ABB A Line contactors for the protection of motors having a nominal voltage of up to 600 VAC max per UL/CSA (690VAC and 800VDC per IEC). These relays are built to be self‑protecting in the event of an overload until the short circuit protection device is activated.

Trip Indication
Optional Remote Trip/Reset
Single Phase and Unbalance Protection
Variety of Accessories Available

Links

Videos

Specifications

Specifications
Manufacturer Part Number	TA75DU25
Manufacturer	ABB
Product Series	TA
Family Series	ABB Overload Relays, TA Series
Description	The TA75DU-25 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further
Type	Bimetallic
Current Rating	18-25 A
Poles	3
Output Contacts	1NO, 1NC
Trip Class	Class 10
Reset Type	Automatic, Manual
Connection Type	Busbar
Ambient Temperature	-13-131 °F
Approvals	CSA, UL
Net Weight	0.8 lbs
Gross Weight	0.8 lbs
