Diversified Electronics
Series
TBC

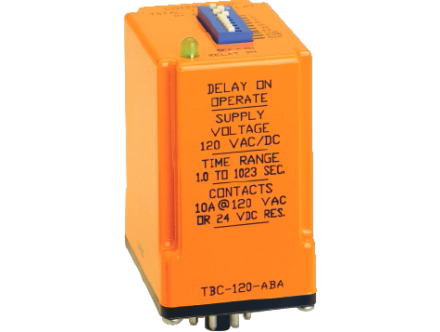

TBC12DAA Diversified Electronics Relays, TBC Series
MFG #:
TBC12DAA
Time Delay Relay
View Full Specs

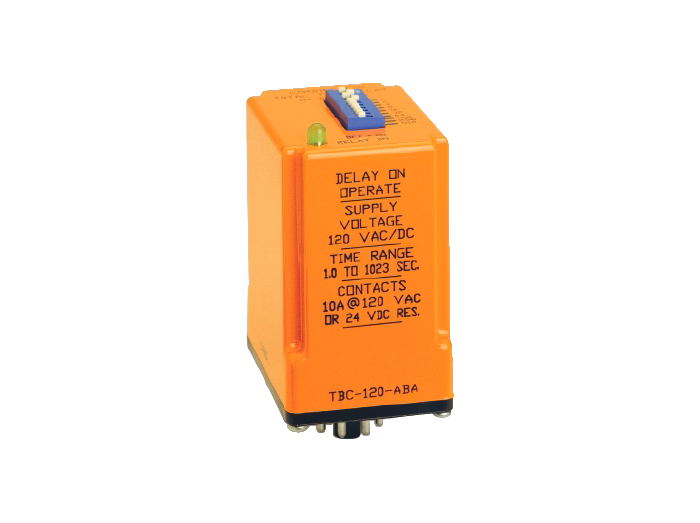

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Diversified Electronics
Series
TBC

TBC12DAA Diversified Electronics Relays, TBC Series

MFG #:
TBC12DAA
Time Delay Relay
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number TBC12DAA
Manufacturer Diversified Electronics
Product Series TBC
Family Series Diversified Electronics Relays, TBC Series
Operation On Delay
Contacts DPDT
Mounting Plug-In, Socket
Status Indicator LED
Time Range Adjustment Onboard
Adjustment Operator DIP Switch
Timing Range 0.1-102.3 s
Max Time 102.3 s
Coil Voltage 12 VDC
Nominal Coil Voltage 12 VDC
DC Voltage 12 VDC
Termination 8 Pin
Approvals CSA, cURus
H x W x D 2.50 " x 1.75 " x 3.70 "
Net Weight 0.35 lbs
Gross Weight 0.38 lbs
