Macromatic
Series
TD-8
TD-85122-41 Macromatic Relays, TD-8 Series
MFG #:
TD-85122-41
TIME DELAY RELAY, 120V AC/DC REPEAT CYCLE, 1 - 1,023 SEC.
View Full Specs

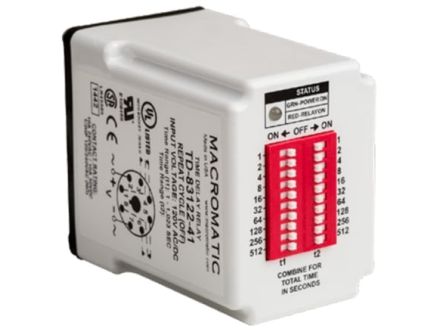

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Macromatic
Series
TD-8

TD-85122-41 Macromatic Relays, TD-8 Series

MFG #:
TD-85122-41
TIME DELAY RELAY, 120V AC/DC REPEAT CYCLE, 1 - 1,023 SEC.
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number TD-85122-41
Manufacturer Macromatic
Product Series TD-8
Family Series Macromatic Relays, TD-8 Series
Operation Repeat Cycle
Contacts DPDT
Mounting Socket
Status Indicator LED
Time Range Adjustment Onboard
Adjustment Operator DIP Switch
Timing Range 1-1,023 s
Max Time 1,023 s
Nominal Coil Voltage 120 VAC, 125 VDC
AC Voltage 120 VAC
DC Voltage 120 VDC
Contact Rating 10 A
Termination 11 Pin
Approvals CE, CSA, UL
H x W x D 1.75 " x 2.35 " x 3.45 "
Net Weight 0.22 lbs
Gross Weight 0.265 lbs
