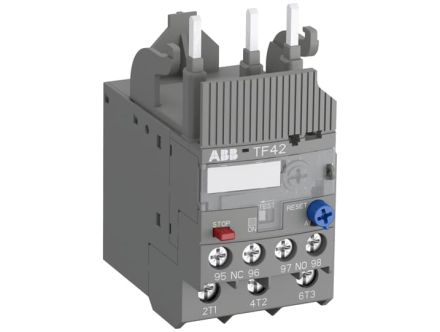

TF42-24 ABB Overload Relays, TF42 Series
MFG #:
TF42-24
The TF42-24 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features
Specifications
| Manufacturer Part Number | TF42-24 |
|---|---|
| Manufacturer | ABB |
| Product Series | TF42 |
| Family Series | ABB Overload Relays, TF42 Series |
| Type | Bimetallic |
| Current Rating | 20-24 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10 |
| Reset Type | Automatic, Manual |
| Connection Type | Screw Terminals |
| Ambient Temperature | -4-140 °F |
| Approvals | ABS, CB, CCC, cUL, DNV, GOST, LLOYD, RINA |
| H x W x D | 3.07 " x 1.89 " x 3.62 " |
| Net Weight | 0.385 lbs |
| Gross Weight | 0.37 lbs |
Description
Overload Relays, TF42 Series
Item #
TF42-24
THERMAL O/L RELAY, 20.0-24.0A
TF42 Series Information
- Continuous Temperature Compensation
- 50/60 Rated D.C. Frequency
- 690V Rated Insulation
- Class J Fuse Type
- Trip Class 10
- 3 Poles
