Macromatic
Series
TR-5
TR-51622-16 Macromatic Relays, TR-5 Series
MFG #:
TR-51622-16
Time Delay Relay, 120VAC/DC, 0.6-60 Minuute, Signal Off Delay, 11-Pin Circular Base, DPDT 10A Output
View Full Specs

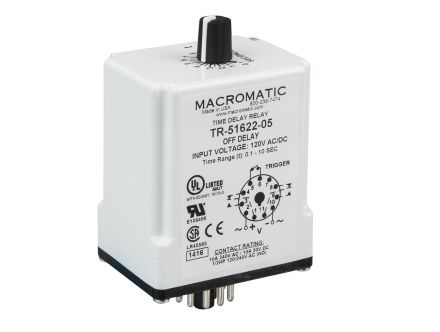

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Macromatic
Series
TR-5

TR-51622-16 Macromatic Relays, TR-5 Series

MFG #:
TR-51622-16
Time Delay Relay, 120VAC/DC, 0.6-60 Minuute, Signal Off Delay, 11-Pin Circular Base, DPDT 10A Output
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number TR-51622-16
Manufacturer Macromatic
Product Series TR-5
Family Series Macromatic Relays, TR-5 Series
Operation Off Delay
Contacts DPDT
Mounting Socket
Time Range Adjustment Onboard
Adjustment Operator Knob
Timing Range 0.6-60 Min
Max Time 60 Min
Nominal Coil Voltage 120 VAC, 125 VDC
AC Voltage 120 VAC
DC Voltage 120 VDC
Contact Rating 10 A
Termination 11 Pin
Approvals CE, CSA, cULus
H x W x D 1.75 " x 2.30 " x 3.95 "
Net Weight 0.21 lbs
Gross Weight 0.255 lbs
