TR-53122-04 Macromatic Relays, TR-5 Series
MFG #:
TR-53122-04
Repeat Cycle Timer, 120VAC/DC, 0.05-5 Sec Range, DPDT 10A Output, 8 Pin Circ Base
View Full Specs

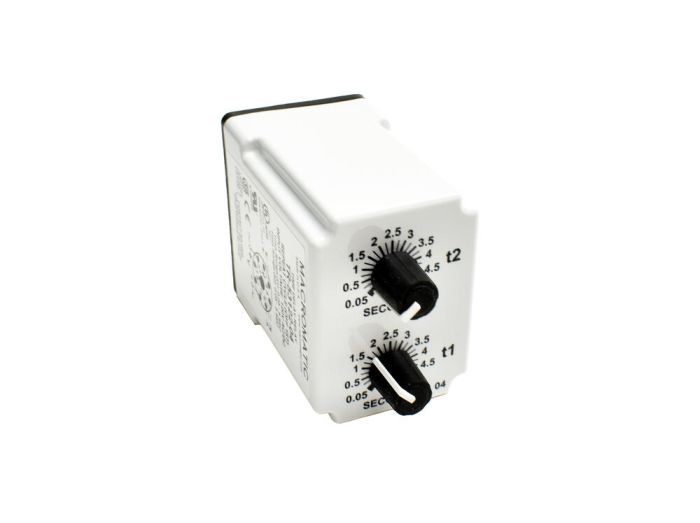

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Macromatic
Series
TR-5

TR-53122-04 Macromatic Relays, TR-5 Series

MFG #:
TR-53122-04
Repeat Cycle Timer, 120VAC/DC, 0.05-5 Sec Range, DPDT 10A Output, 8 Pin Circ Base
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number TR-53122-04
Manufacturer Macromatic
Product Series TR-5
Family Series Macromatic Relays, TR-5 Series
Operation Repeat Cycle
Contacts DPDT
Mounting Socket
Time Range Adjustment Onboard
Adjustment Operator Knob
Timing Range 0.05-5 s
Max Time 5 s
Nominal Coil Voltage 120 VAC, 125 VDC
AC Voltage 120 VAC
DC Voltage 120 VDC
Contact Rating 10 A
Termination 8 Pin
Approvals CE, CSA, cULus
H x W x D 2.50 " x 1.75 " x 3.95 "
Net Weight 0.22 lbs
Gross Weight 0.265 lbs
