TR-6822U Macromatic Relays, TR-6 Series
MFG #:
TR-6822U
Multi-Function Timer, Programmable, 24-240VAC/12-125VDC Power, DPDT 10A Output, 8 Pin Circular Base
View Full Specs

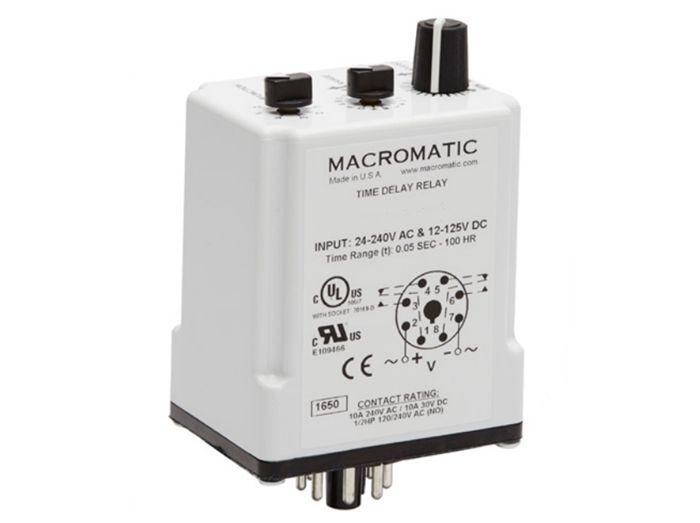

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Macromatic
Series
TR-6

TR-6822U Macromatic Relays, TR-6 Series

MFG #:
TR-6822U
Multi-Function Timer, Programmable, 24-240VAC/12-125VDC Power, DPDT 10A Output, 8 Pin Circular Base
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number TR-6822U
Manufacturer Macromatic
Product Series TR-6
Family Series Macromatic Relays, TR-6 Series
Operation Flasher, Interval On, On Delay
Contacts DPDT
Mounting Plug-In
Status Indicator None
Adjustment Operator Knob
Timing Range 0.05 s-100 Hrs
Max Time 100 Hrs
Coil Voltage 24-240 VAC, 12-125 VDC
Nominal Coil Voltage 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC, 12 VDC, 24 VDC, 48 VDC, 125 VDC
AC Voltage 24-240 VAC
DC Voltage 12-125 VDC
Contact Rating 10 A
Termination 8 Pin
Approvals CE, cULus, cURus
H x W x D 2.40 " x 1.70 " x 3.50 "
Net Weight 0.22 lbs
Gross Weight 0.27 lbs
