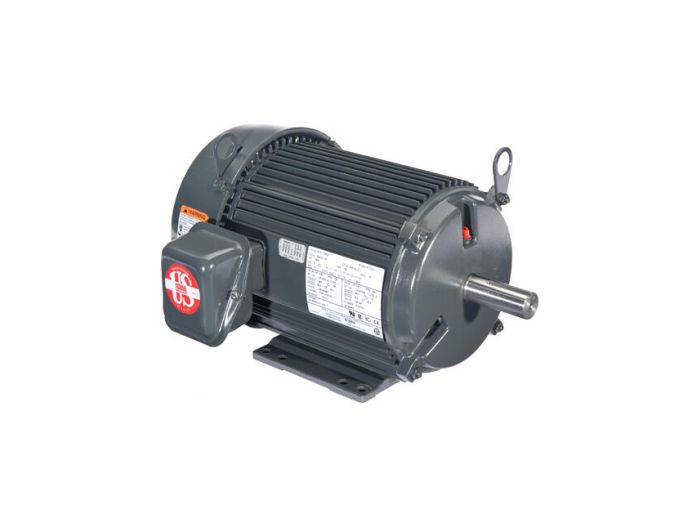

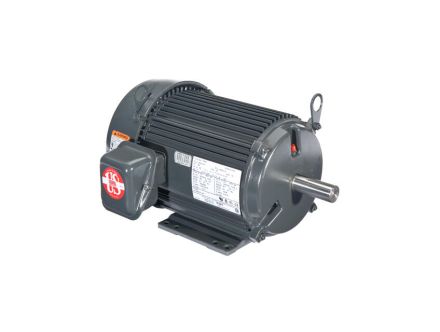

U10D10C
MFG #:
U10D10C
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | U10D10C |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | Definite Purpose |
| Horsepower | 10 hp |
| Kilowatts | 7.5 kW |
| Speed | 1,775 RPM |
| RPM | 1,775 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 256T |
| AC Voltage | 460 VAC |
| Nominal Voltage | 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Current Rating | 12.9 A |
| Composition | Aluminum |
| H x W x D | 19.50 " x 22.50 " x 29.50 " |
| Net Weight | 262 lbs |
| Gross Weight | 262 lbs |
Description
Motors, Series
Item #
U10D10C
Motor, Pool and Spa
