U15P1DFC
MFG #:
U15P1DFC
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | U15P1DFC |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose |
| Horsepower | 15 hp |
| Kilowatts | 11.2 kW |
| Speed | 3,495 RPM |
| RPM | 3,495 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 215TC |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 40-35 A, 17.4 A |
| Composition | Aluminum |
| Net Weight | 120 lbs |
| Gross Weight | 120 lbs |
Description
Motors, Series
Item #
U15P1DFC

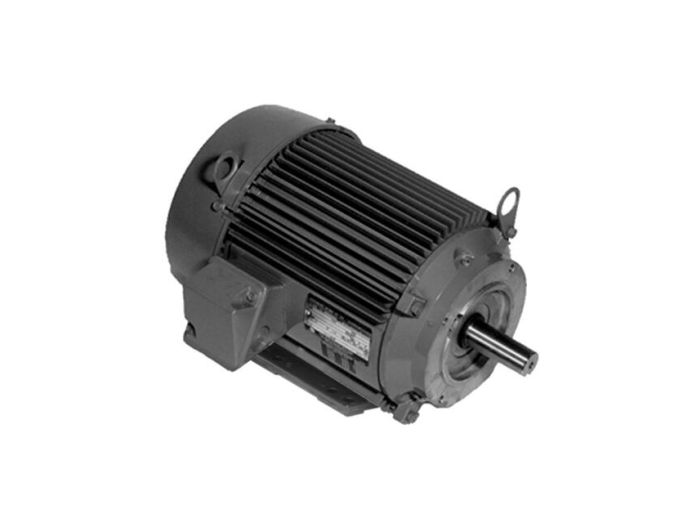

Motor, 15 HP, 3600 RPM, 215TC
Series Information
Documents & Resources Links
Added to Cart
U15P1DFC US Motors Motors, Motor, 15 HP, 3600 RPM, 215TC
MFG #:
U15P1DFC
Motor, 15 HP, 3600 RPM, 215TC
