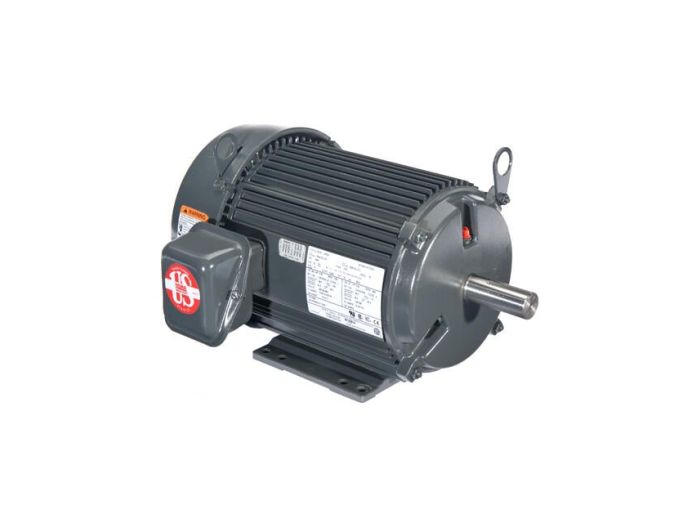

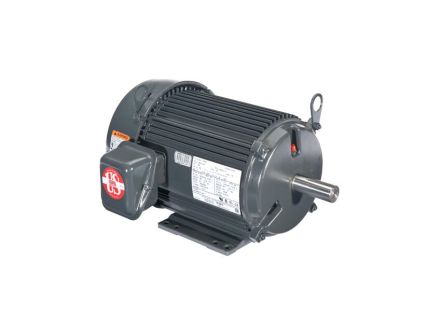

U15R9C
MFG #:
U15R9C
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | U15R9C |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | Definite Purpose |
| Horsepower | 15 hp |
| Kilowatts | 11.2 kW |
| Speed | 1,765 RPM |
| RPM | 1,765 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 284T |
| AC Voltage | 460 VAC |
| Nominal Voltage | 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Current Rating | 18.6 A |
| Composition | Aluminum |
| H x W x D | 19.50 " x 22.50 " x 29.50 " |
| Net Weight | 262 lbs |
| Gross Weight | 262 lbs |
Description
Motors, Series
Item #
U15R9C
Motor, 15/7.5 HP, 1800/900 RPM, 284T
Series Information
Documents & Resources Links
Added to Cart
U15R9C US Motors Motors, Motor, 15/7.5 HP, 1800/900 RPM, 284T
MFG #:
U15R9C
Motor, 15/7.5 HP, 1800/900 RPM, 284T
