U15V2B
MFG #:
U15V2B
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | U15V2B |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | Definite Purpose |
| Horsepower | 15 hp |
| Speed | 1,775 RPM |
| RPM | 1,775 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 254T |
| AC Voltage | 230 VAC, 460 VAC |
| Nominal Voltage | 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Inverter Duty | Yes |
| Composition | Aluminum |
| Net Weight | 180 lbs |
| Gross Weight | 180 lbs |
Description
Motors, Series
Item #
U15V2B

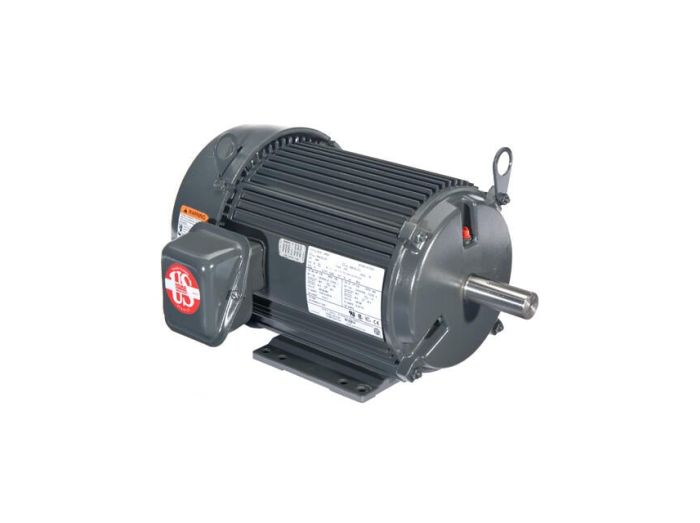

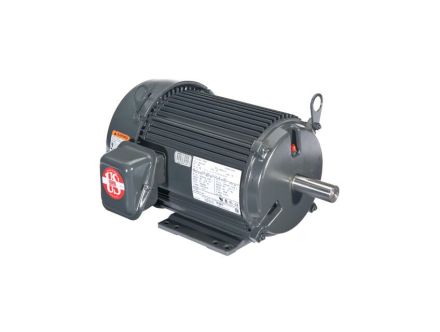

Motor, 15 HP, 1800 RPM, 254T
Series Information
Documents & Resources Links
Added to Cart
U15V2B US Motors Motors, Motor, 15 HP, 1800 RPM, 254T
MFG #:
U15V2B
Motor, 15 HP, 1800 RPM, 254T
