UN12V2AC
MFG #:
UN12V2AC
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | UN12V2AC |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | Definite Purpose |
| Horsepower | 1/2 hp |
| Kilowatts | 0.4 kW |
| Speed | 1,725 RPM |
| RPM | 1,725 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 56C |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Non-Ventilated |
| Mounting | C-Face, Rigid |
| Current Rating | 2-2.1 A, 1.1 A |
| Inverter Duty | Yes |
| Composition | Aluminum |
| Bearing Type | Ball |
| Overload Protection | None |
| H x W x D | 10.88 " x 10.50 " x 15.32 " |
| Net Weight | 26 lbs |
| Gross Weight | 26 lbs |
Description
Motors, Series
Item #
UN12V2AC

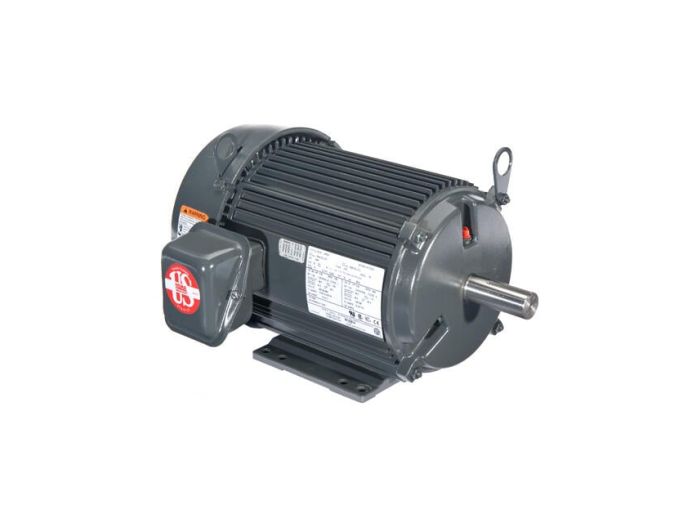

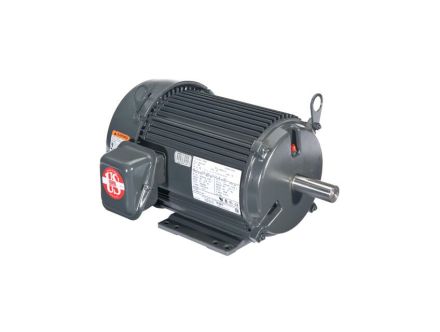

Motor, 1/2 HP, 1800 RPM, 56C
