Specifications
| Manufacturer Part Number | V1K250A01 |
|---|---|
| Manufacturer | TCI |
| Product Series | V1K |
| Family Series | TCI Filters, V1K Series |
| Current Rating | 250 A |
| Watts Loss | 290 W |
| Voltage | 600 VAC |
| Frequency | 60 Hz |
| Motor HP | @ 480V: 200 hp, @ 550-600V: 250 hp |
| Enclosed | Yes |
| NEMA Rating | NEMA 1 |
| Approvals | cUL, UL |
| Comments | 3 Phase |
| H x W x D | 15.00 " x 16.50 " x 18.00 " |
| Net Weight | 93 lbs |
| Gross Weight | 93 lbs |
Description

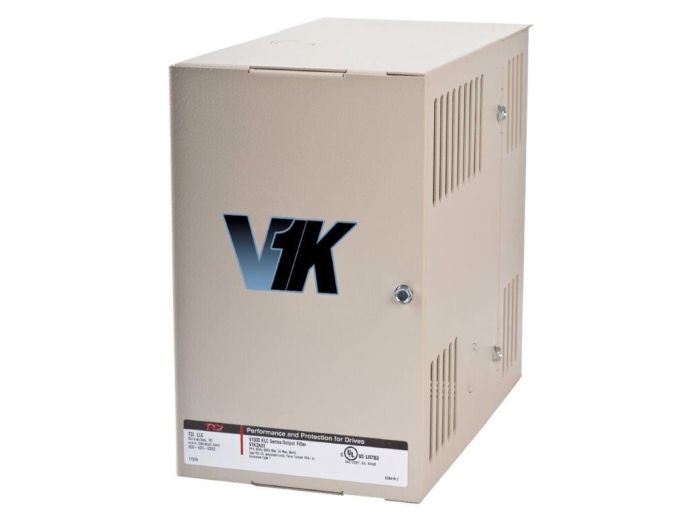

Filters, V1K Series
Item #
V1K250A01
V1000, 250 AMP, 480 V., ENCLOSED,
V1K Series Information
- Increase the Voltage Rise Time
- Extend the Life of the Motor
- Improve System Productivity
- Protect Long Lead Lengths
- Increased Energy Savings
- Reduce Common Mode
- Prevent Motor Failure
- Protect Cable Runs
