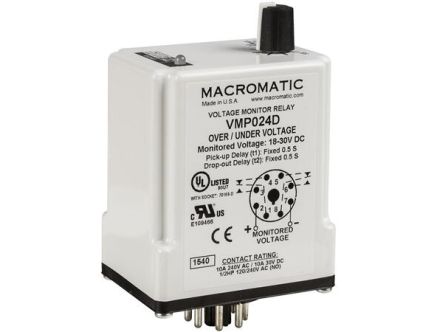

VMP024D Macromatic Protection Relays, VM Series
MFG #:
VMP024D
Over/Under Voltage Relay, 24VDC, DPDT 10A Output, Fixed Drop-Out @ 95pct. of the Adjsuted Pick-Up Setting
View Full Specs

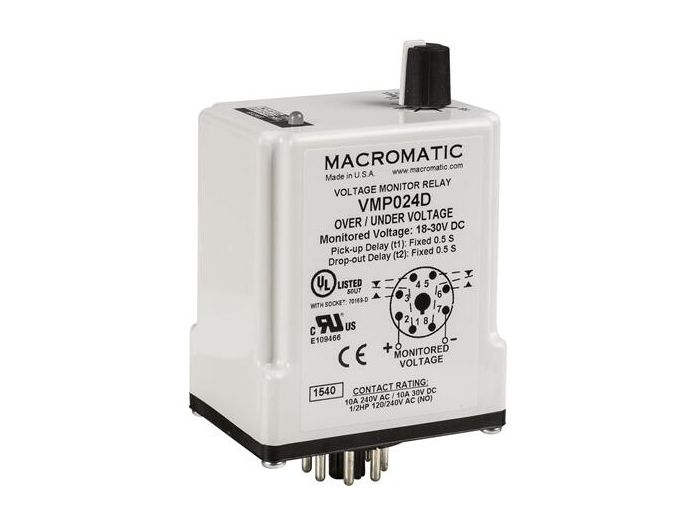

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Macromatic
Series
VM

VMP024D Macromatic Protection Relays, VM Series

MFG #:
VMP024D
Over/Under Voltage Relay, 24VDC, DPDT 10A Output, Fixed Drop-Out @ 95pct. of the Adjsuted Pick-Up Setting
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number VMP024D
Manufacturer Macromatic
Product Series VM
Family Series Macromatic Protection Relays, VM Series
Phase 1
Voltage 30 V, 120 V, 240 V
Line Voltage 24 V
Current Rating 10 A
Hi Pwr (Over Vltg) Trip No
Variable Point Trip No
Time Delay Trip (Sec) 0.5 s
Restart Delay (Sec) 1 s
Var Restart Delay No
Manual Reset No
Type of Display LED Status Indicator
Mounting Plug-In
Output Relay DPDT
Approvals cURus, UL
Comments Mechanical: 10,000,000 operations, Full Load: 100,000 operations
H x W x D 1.75 " x 2.30 " x 3.90 "
Net Weight 0.215 lbs
Gross Weight 0.28 lbs
