WDS12S1AHC
US Motors Motors
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
WDS12S1AHC US Motors Motors

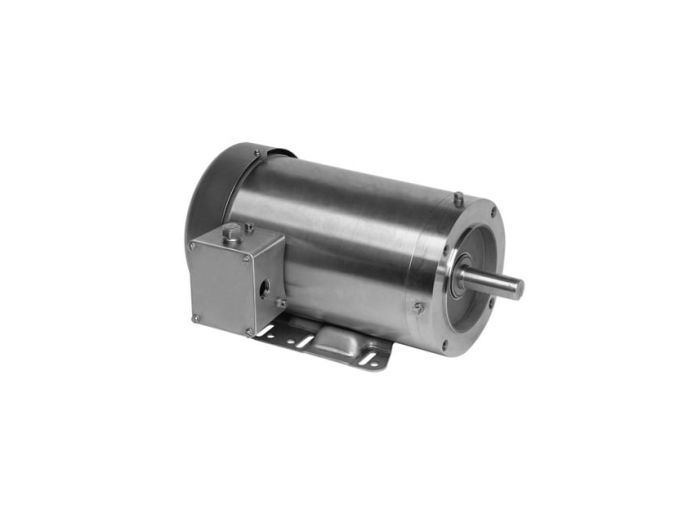

Motor, 1/2 HP, 3600 RPM, 56HC
MFG Item Number
WDS12S1AHC
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Series
Item #
WDS12S1AHC
Motor, 1/2 HP, 3600 RPM, 56HC
Series Information
Specifications
| Manufacturer Part Number | WDS12S1AHC |
|---|---|
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Description | Motor, 1/2 HP, 3600 RPM, 56HC |
| Type | Special Application Washdown |
| Horsepower | 1/2 hp |
| Kilowatts | 0.4 kW |
| Speed | 3,525 RPM |
| RPM | 3,525 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 56HC |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 0.8 A, 1.6-1.5 A |
| Composition | Rolled Steel |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
