WDS32P1AC
US Motors Motors
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
WDS32P1AC US Motors Motors

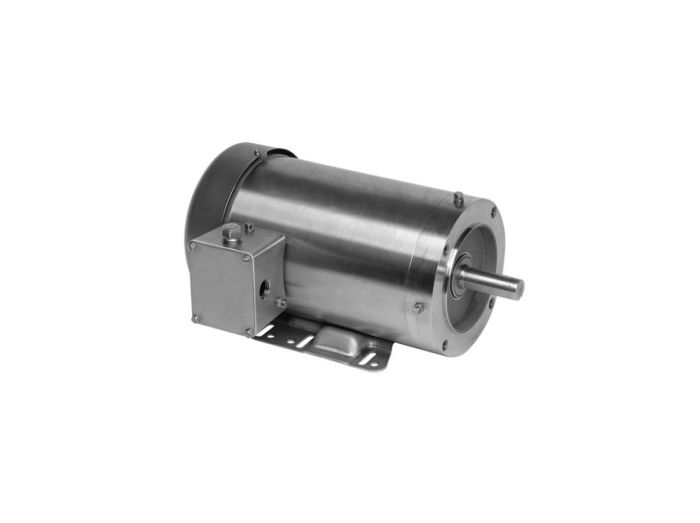

Motor, 1.5 HP, 3600 RPM, 145TC
MFG Item Number
WDS32P1AC
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Series
Item #
WDS32P1AC
Motor, 1.5 HP, 3600 RPM, 145TC
Series Information
Specifications
| Manufacturer Part Number | WDS32P1AC |
|---|---|
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Description | Motor, 1.5 HP, 3600 RPM, 145TC |
| Type | Special Application Washdown |
| Horsepower | 1-1/2 hp |
| Kilowatts | 1.1 kW |
| Speed | 3,510 RPM |
| RPM | 3,510 RPM |
| Number of Poles | 2 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 145TC |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 1.9 A, 4.2-3.8 A |
| Composition | Rolled Steel |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
