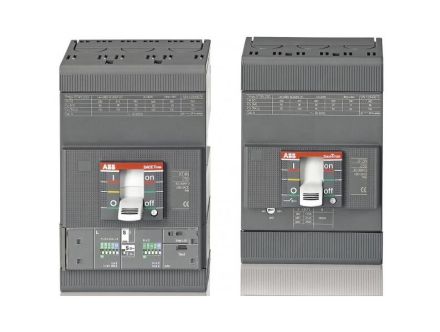

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
XT1NU3070AFF000XXX ABB Circuit Breakers, Tmax XT Series
Circuit Breaker, 3-P, 70A/480V,
MFG Item Number
XT1NU3070AFF000XXX
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Circuit Breakers, Tmax XT Series
Item #
XT1NU3070AFF000XXX
Circuit Breaker, 3-P, 70A/480V,
Tmax XT Series Information
Tmax XT molded case circuit breakers offers extraordinary flexibility and completeness of range to simplify system designs and reduce inventory and procurement costs. With current ratings up to 250A and a voltage rating of 600V, both alternating (AC) and direct (DC) current in the same breaker. This combined with extended breaking capacities, up to 200kA, gives SACE Tmax XT molded case circuit breakers the ability to cover a full range of applications.
For the most cost effective solution, the Tmax XT1 and XT3 provide the ability to purchase only what you need without paying for extra bells and whistles. They offer a thermal magnetic trip unit up to 225A and breaking capacities up to 100kA. Tmax XT2 and XT4 offer an extraordinary range of trip unit flexibility with adjustable thermal magnetic trip units with an adjustment range of 70%. They also offer a full line of electronic trip units with multiple fault protection options and up to 40% adjustability range. Finally, to ensure your design will fit customer requirements around the globe, the Tmax XT is globally certified UL/CSA/IEC with a wide range of naval registrations and much more.
For the most cost effective solution, the Tmax XT1 and XT3 provide the ability to purchase only what you need without paying for extra bells and whistles. They offer a thermal magnetic trip unit up to 225A and breaking capacities up to 100kA. Tmax XT2 and XT4 offer an extraordinary range of trip unit flexibility with adjustable thermal magnetic trip units with an adjustment range of 70%. They also offer a full line of electronic trip units with multiple fault protection options and up to 40% adjustability range. Finally, to ensure your design will fit customer requirements around the globe, the Tmax XT is globally certified UL/CSA/IEC with a wide range of naval registrations and much more.
Specifications
| Manufacturer Part Number | XT1NU3070AFF000XXX |
|---|---|
| Manufacturer | ABB |
| Product Series | Tmax XT |
| Family Series | ABB Circuit Breakers, Tmax XT Series |
| Description | Circuit Breaker, 3-P, 70A/480V, 25KAIC@480VAC, Thermal-Mag Trip, Less Terminal Lugs, 1SDA074643R1, UL |
| Poles | 3 |
| Current Rating | 70 A |
| Max Voltage | 600 VAC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| Neutral Pole | No |
| 100% Rated | No |
| Terminal Type | Bolt-On |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| UL Standard | 489 |
| Approvals | CSA, IEC, UL |
| H x W x D | 5.31 " x 5.04 " x 5.63 " |
| Gross Weight | 2.43 lbs |
| Net Weight | 2.06 lbs |
