Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

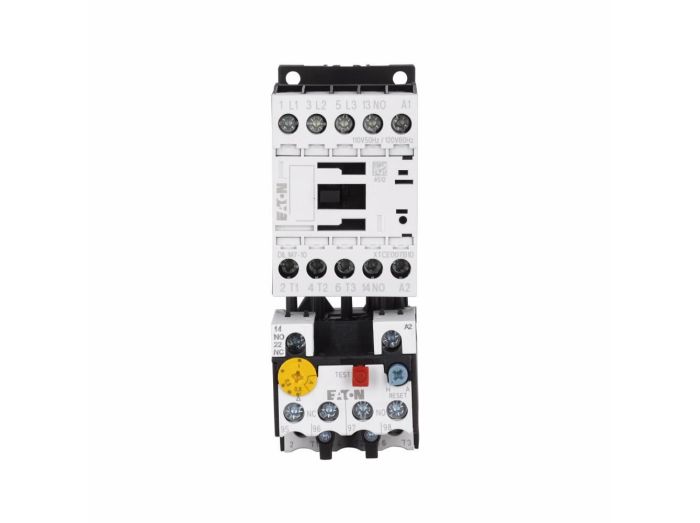

XTAE007B10A004 Eaton Starters, XT Series
MFG #:
XTAE007B10A004
Eaton XT IEC electronic motor starter,Full voltage non-reversing IEC starter,7 A,110 V 50 Hz, 120 V 60 Hz,1NO,B frame,45 mm,2.4-4 A,Screw terminals
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTAE007B10A004 |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Starters, XT Series |
| Style | Open |
| Industry Standard | IEC |
| Poles | 3 |
| Voltage | 120 VAC |
| Nominal Voltage | 120 VAC |
| Motor FLA (Amps) | 2.4-4 A |
| UL Motor Starting (AC3) | 7 A |
| General Purpose (AC1) | 20 A |
| Coil Type | Magnetic |
| Auxiliary Contact | 1NO |
| Overload Type | Thermal |
| Overload Series | XTOB |
| Termination | Screw |
| Mounting | Surface |
| H x W x D | 3.55 " x 1.80 " x 4.70 " |
| Net Weight | 0.94 lbs |
| Gross Weight | 1.155 lbs |
Description
Starters, XT Series
Item #
XTAE007B10A004
Str 3P FVNR 7A FR B 1NO 2.4-4A 110/50 12
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Poles | Price | Action |
|---|---|---|---|---|---|---|
|
XTOB004BC1 | Eaton XT IEC bimetallic overload relay, 2.4-4A overload range, 45 mm Frame size, 1NO-1NC contact configuration, Direct to contactor mounting, used with 7-15A contactor, 10A trip type | XTOB | 3 |
Price unavailable
|
|
|
XTCE007B10A | Eaton XT IEC contactor, 7A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 7A, Frame B, 45 mm, 50-60 Hz, 0.25, 0.75, 1/ 1.5, 2, 3, 5 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, Full voltage non-reversing contactor | XT | 3NO |
Price unavailable
|
Added to Cart
XTAE007B10A004 Eaton Starters, XT Series, Str 3P FVNR 7A FR B 1NO 2.4-4A 110/50 12
Series XT
MFG #:
XTAE007B10A004
Eaton XT IEC electronic motor starter,Full voltage non-reversing IEC starter,7 A,110 V 50 Hz, 120 V 60 Hz,1NO,B frame,45 mm,2.4-4 A,Screw terminals
Alternatives
XTOB004BC1 Eaton Overload Relays, Xtob Series
Series XTOB
Series XTOB
MFG #:
XTOB004BC1
Eaton XT IEC bimetallic overload relay, 2.4-4A overload range, 45 mm Frame size, 1NO-1NC contact configuration, Direct to contactor mounting, used with 7-15A contactor, 10A trip type
View More Details
XTCE007B10A Eaton Contactors, XT Series
Series XT
Series XT
MFG #:
XTCE007B10A
Eaton XT IEC contactor, 7A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 7A, Frame B, 45 mm, 50-60 Hz, 0.25, 0.75, 1/ 1.5, 2, 3, 5 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, Full voltage non-reversing contactor
View More Details
